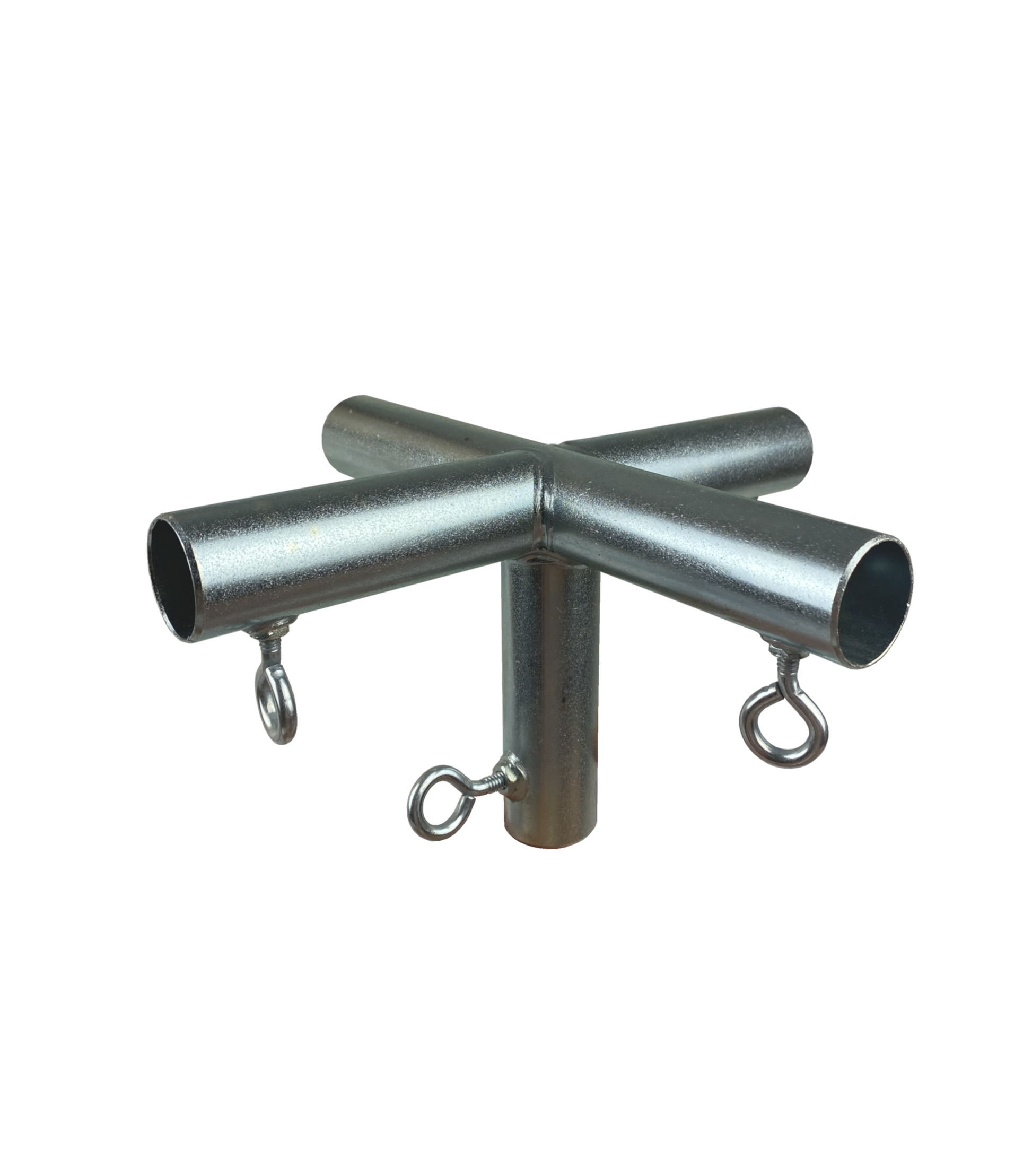

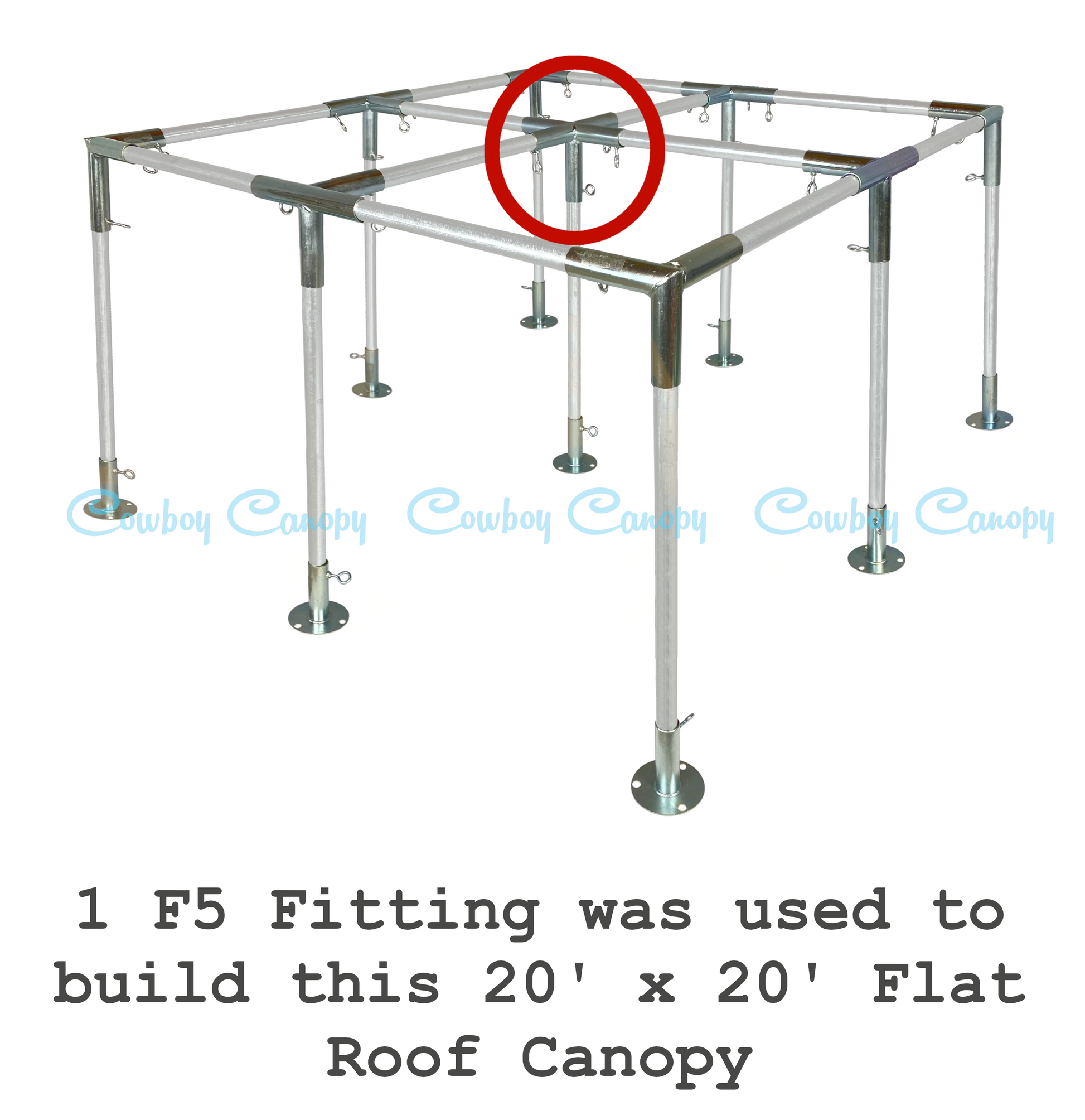

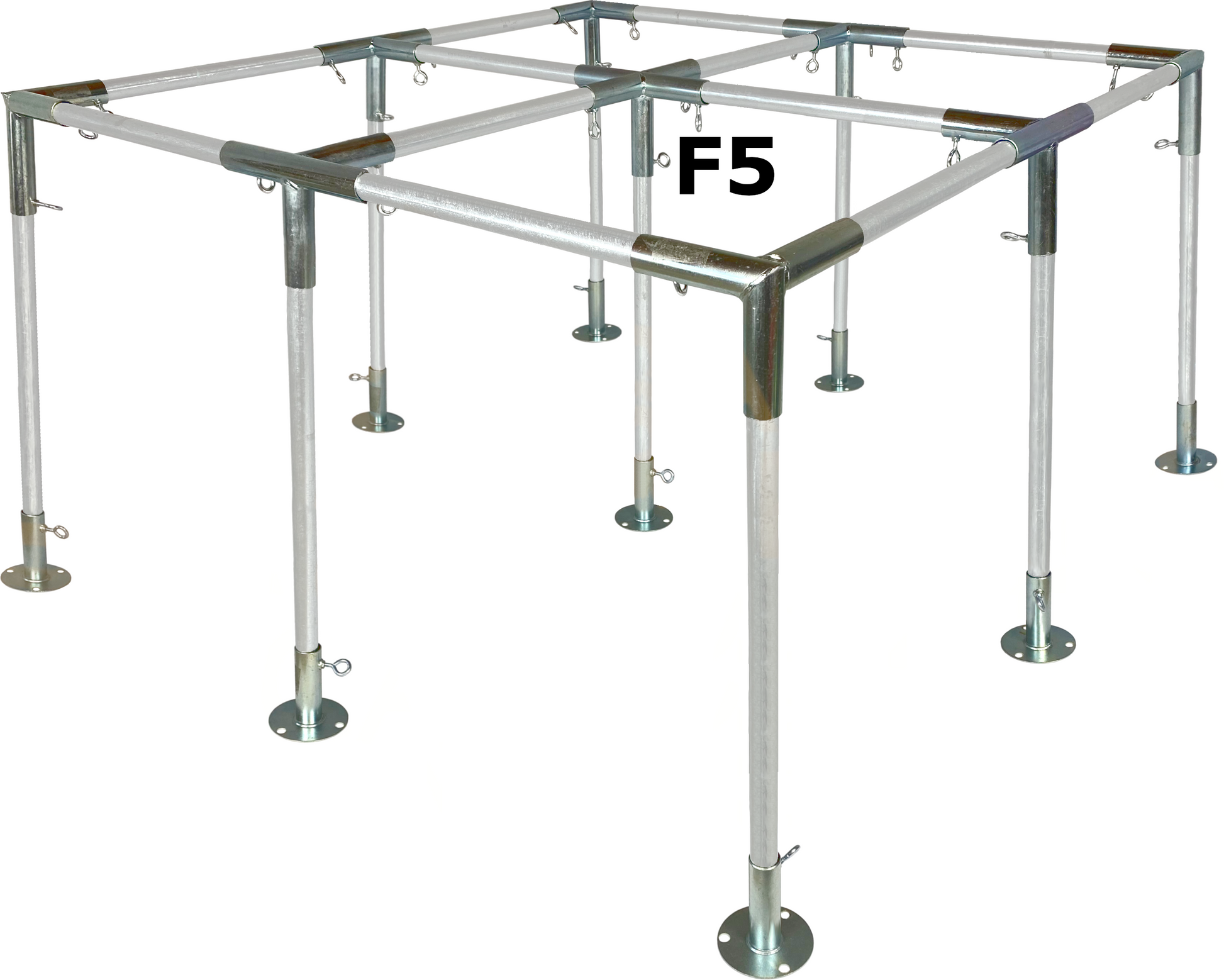

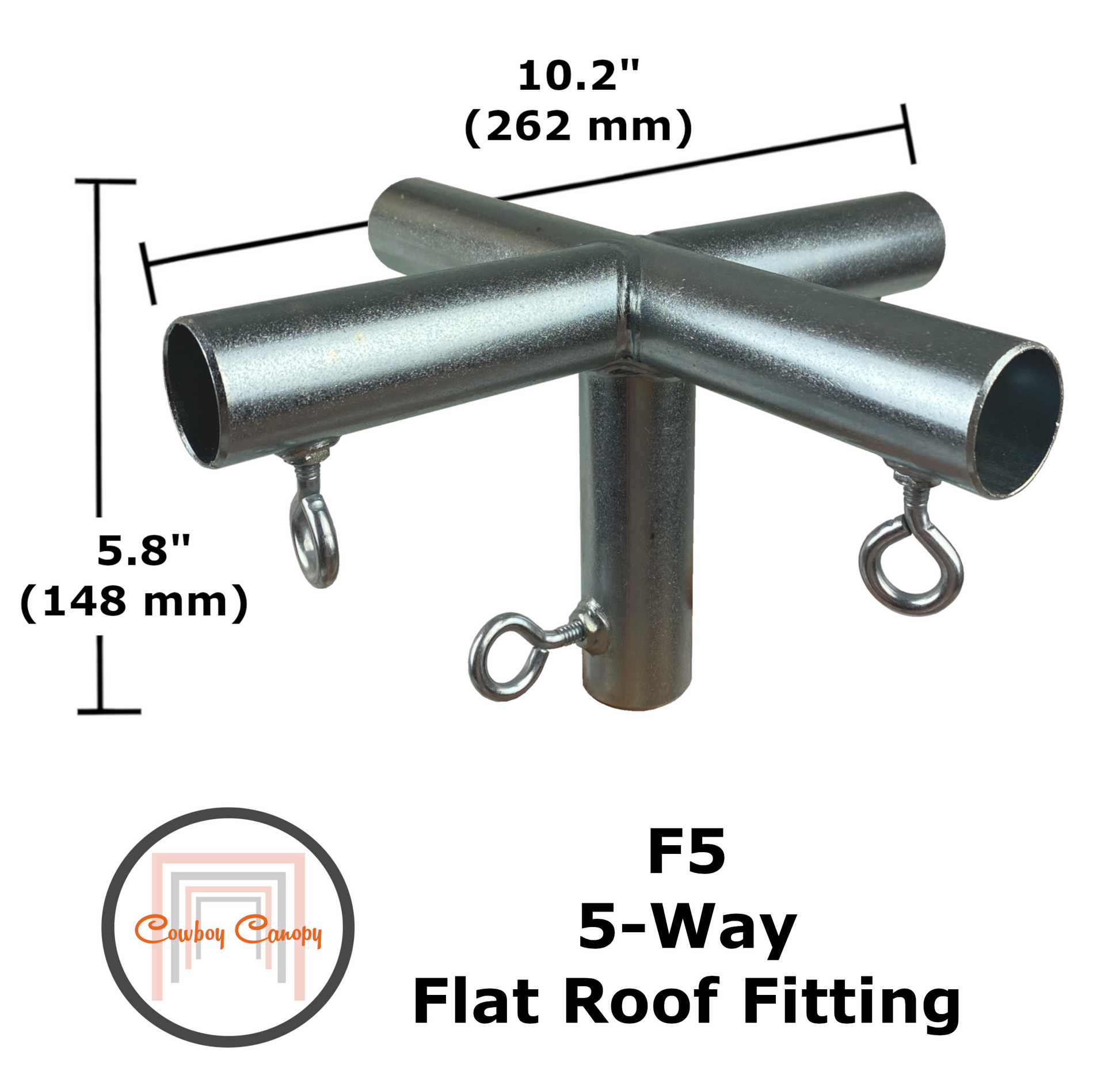

F5 Fittings are 5-Way Peak Fittings used to build large flat roof canopies with center legs.
Cowboy Canopy Fittings are made to fit EMT Conduit (Electrical Metallic Tubing). EMT conduit is sold in standardized 10' lengths at any major hardware store.
F5Fittings are available in three sizes: (3/4", 1", and 1-1/2")
3/4" Canopy Fittings pair with 3/4" EMT conduit.
Actual Fitting Inside Diameter 0.985" (+/- .02")
1" Canopy Fittings pair with 1" EMT conduit.
Actual Fitting Inside Diameter 1.255" (+/- .02")
1-1/2" Canopy Fittings pair with 1-1/4" EMT conduit.
Actual Fitting Inside Diameter 1.550" (+/- .02")
Cowboy Canopy Fittingsare premium Canopy Fittings. All Fittings have Eye Bolts, which allow for assembly without using tools. Our Fittings are made of strong, 15-Gauge galvanized steel. The galvanized steel is rust resistant and long-lasting. The welded joints are solid and capable of maintaining integrity under stress. Even the Eye Bolt nuts have 360-degree welds (no tack welds). Cowboy Canopy Fittings will provide you with decades of use.
