1" A-Frame Kits (10'x20' and 20'x 20/30/40')

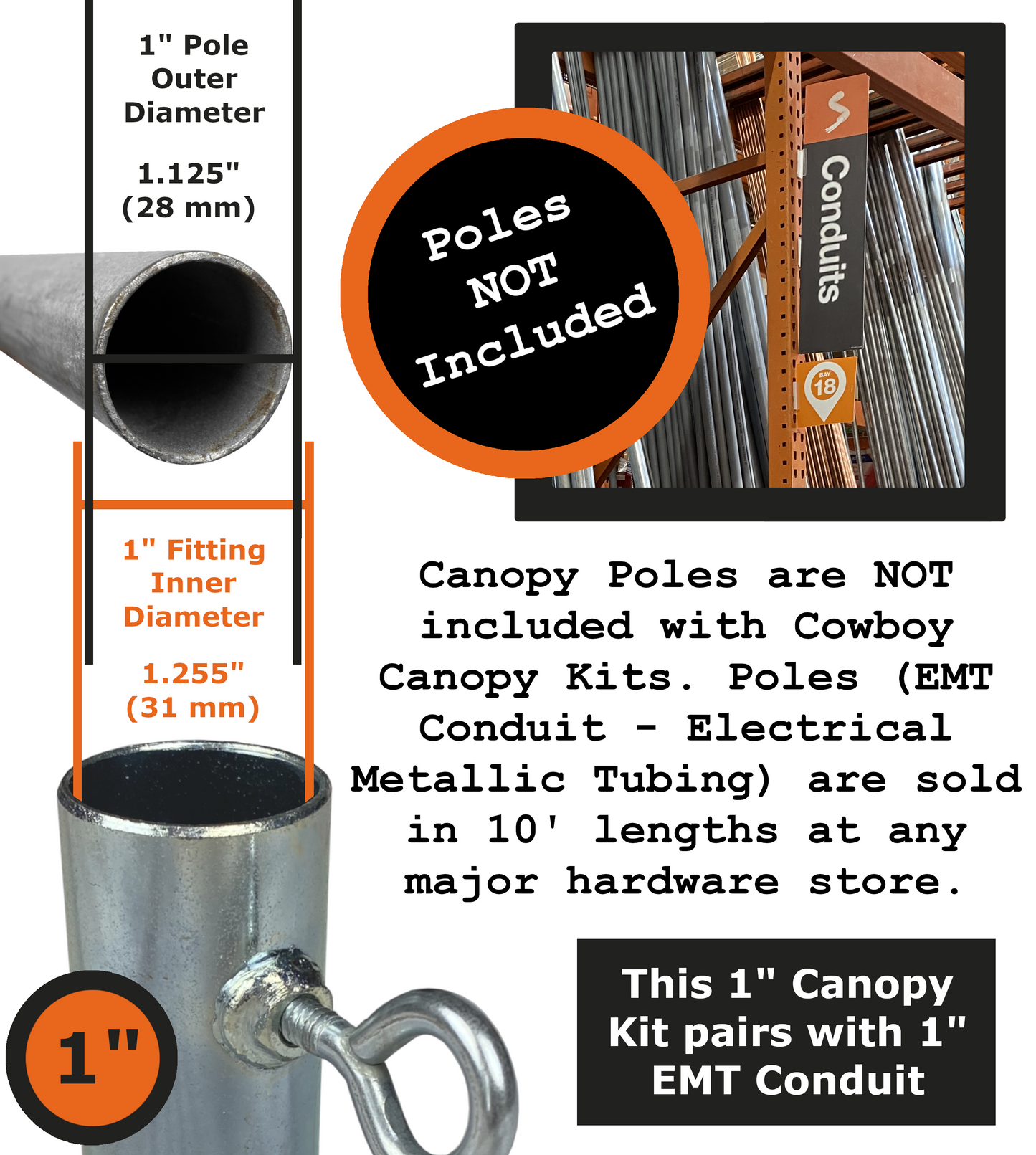

Cowboy Canopy Kits include the FITTINGS only. The electrical conduit poles are NOT included. The main framework poles (EMT- Electrical Metallic Tubing) are sold in standardized 10' lengths at any major hardware store. This Kit uses 1" EMT conduit.

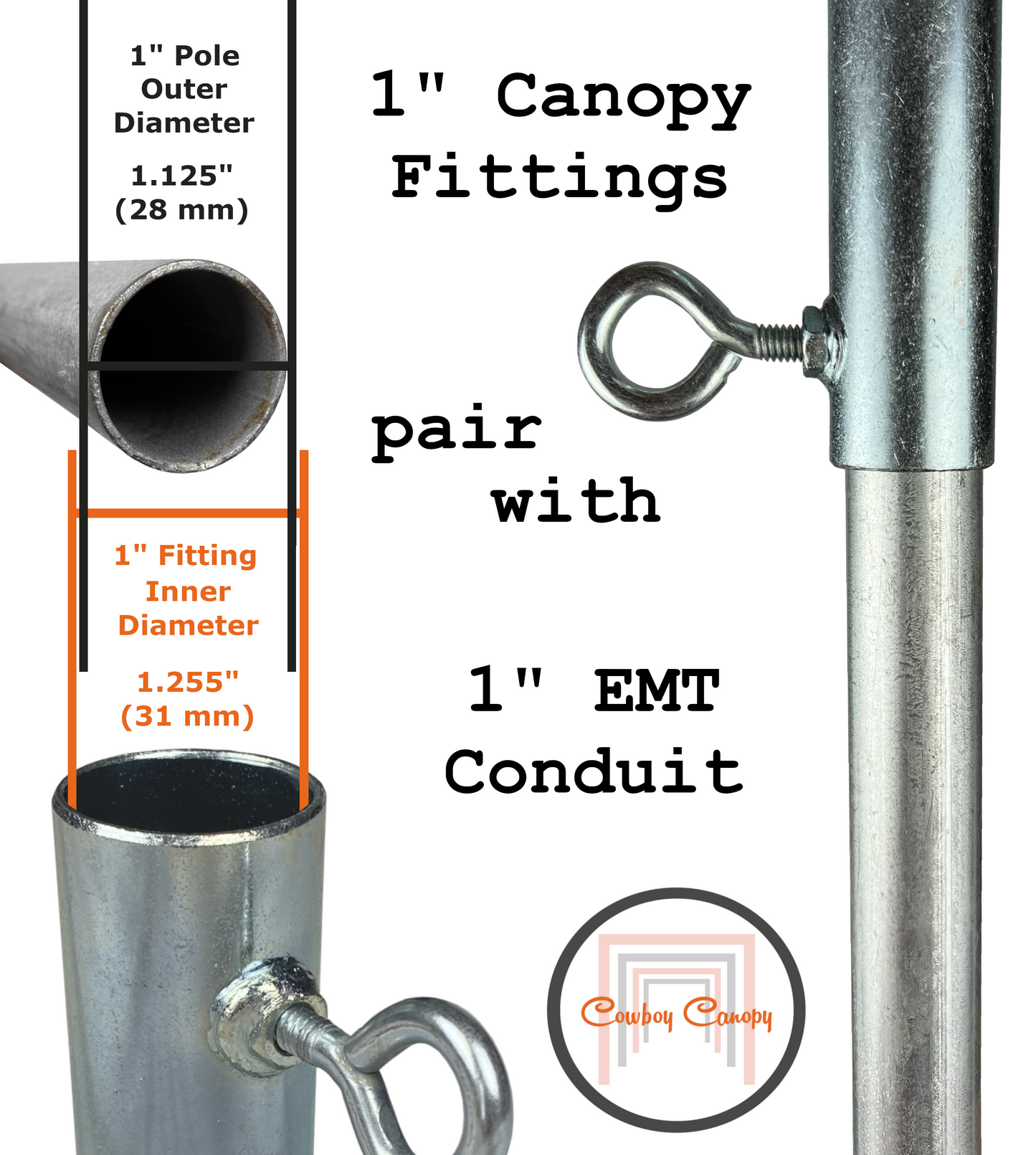

1" Canopy Fittings pair with 1" EMT conduit.
(Actual Fitting Inside Diameter 1.255" (+/- .02")

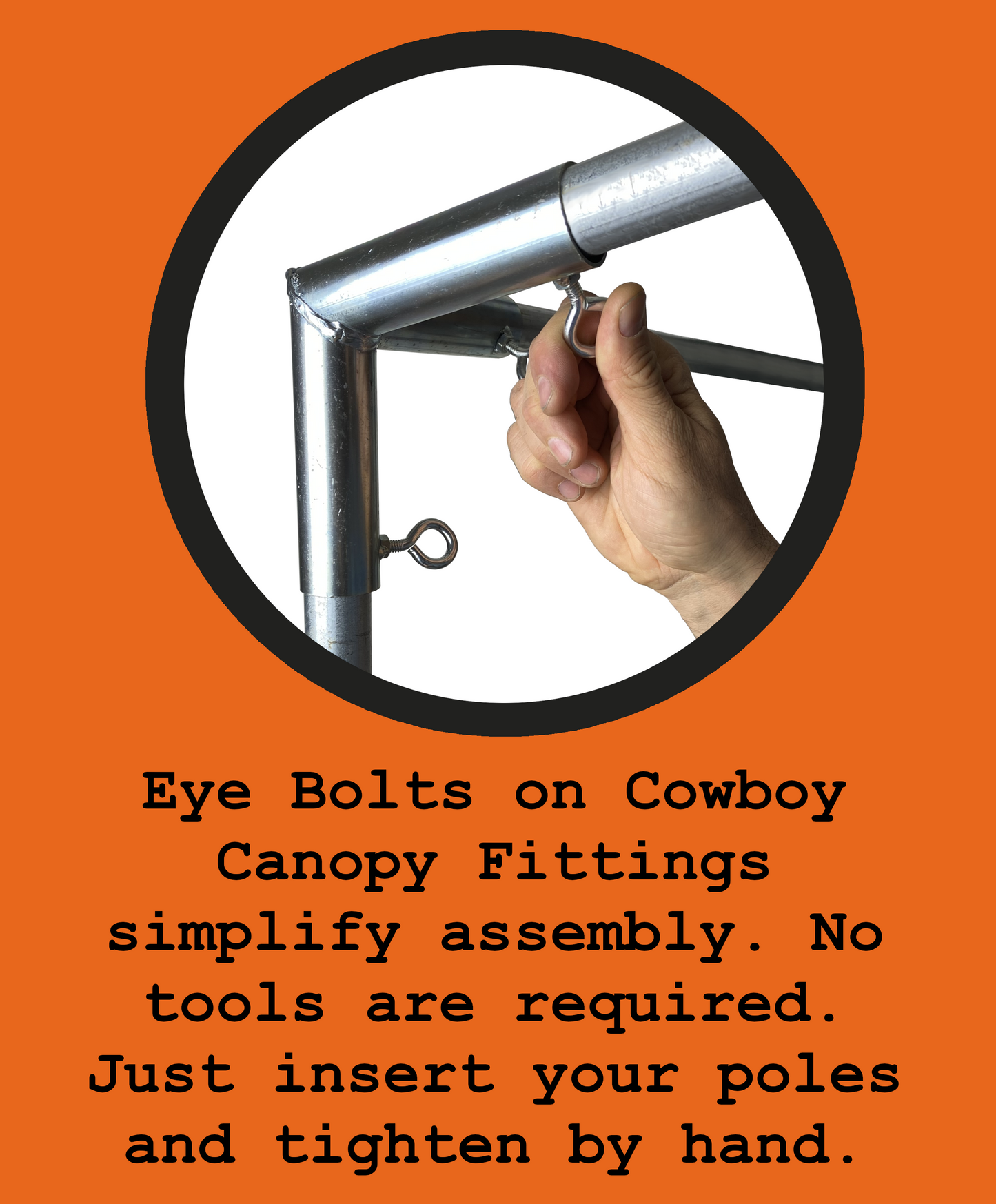

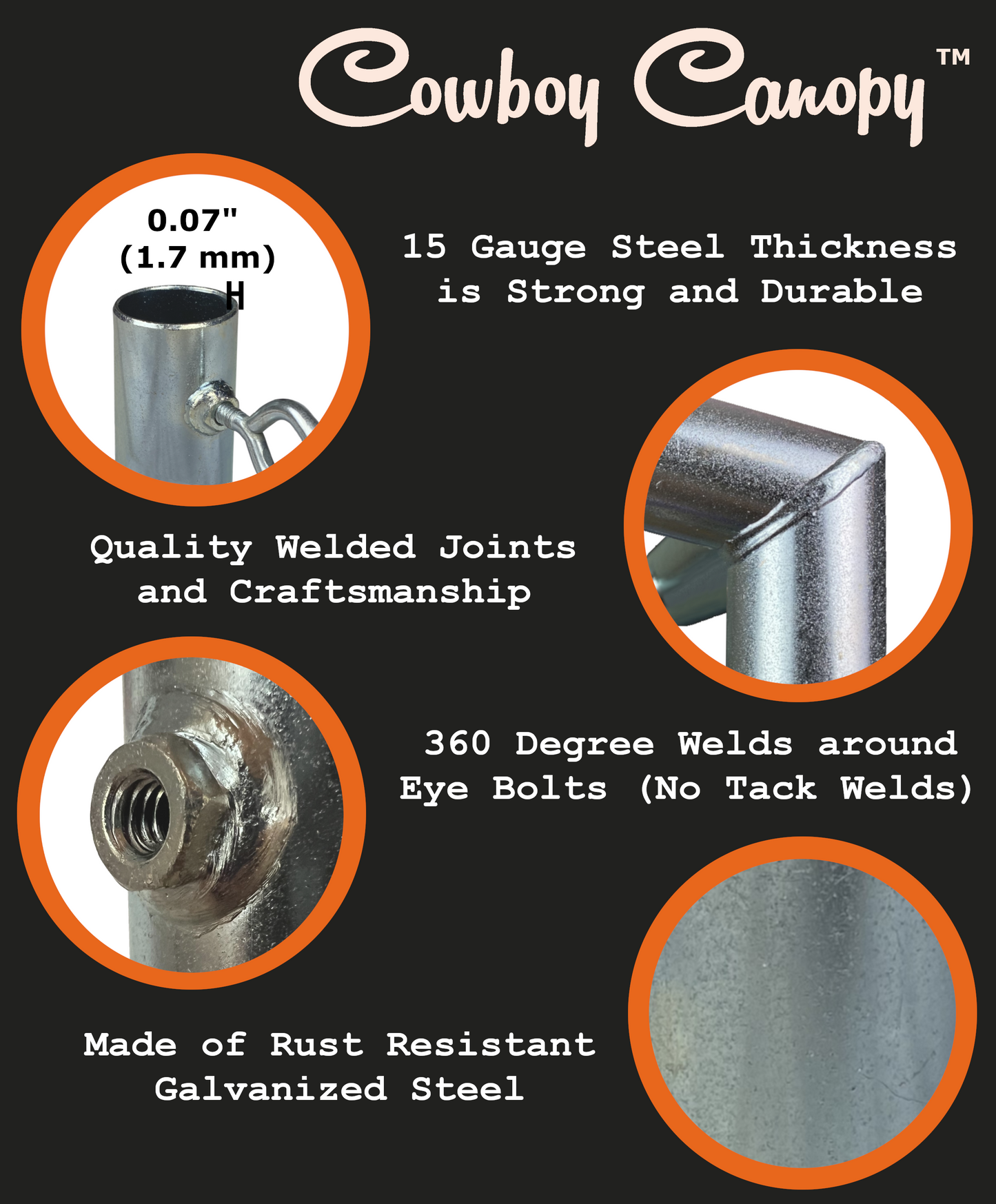

Cowboy Canopy Fittings are premium Canopy Fittings. All Fittings have eye bolts, which allow for assembly without using tools. Our Fittings are made of strong, 15-Gauge galvanized steel. The galvanized steel is rust resistant and long-lasting. The welded joints are solid and capable of maintaining integrity under stress. Even the eye bolts have 360 welds (no tack welds). Cowboy Canopy Fittings will provide you with decades of use.

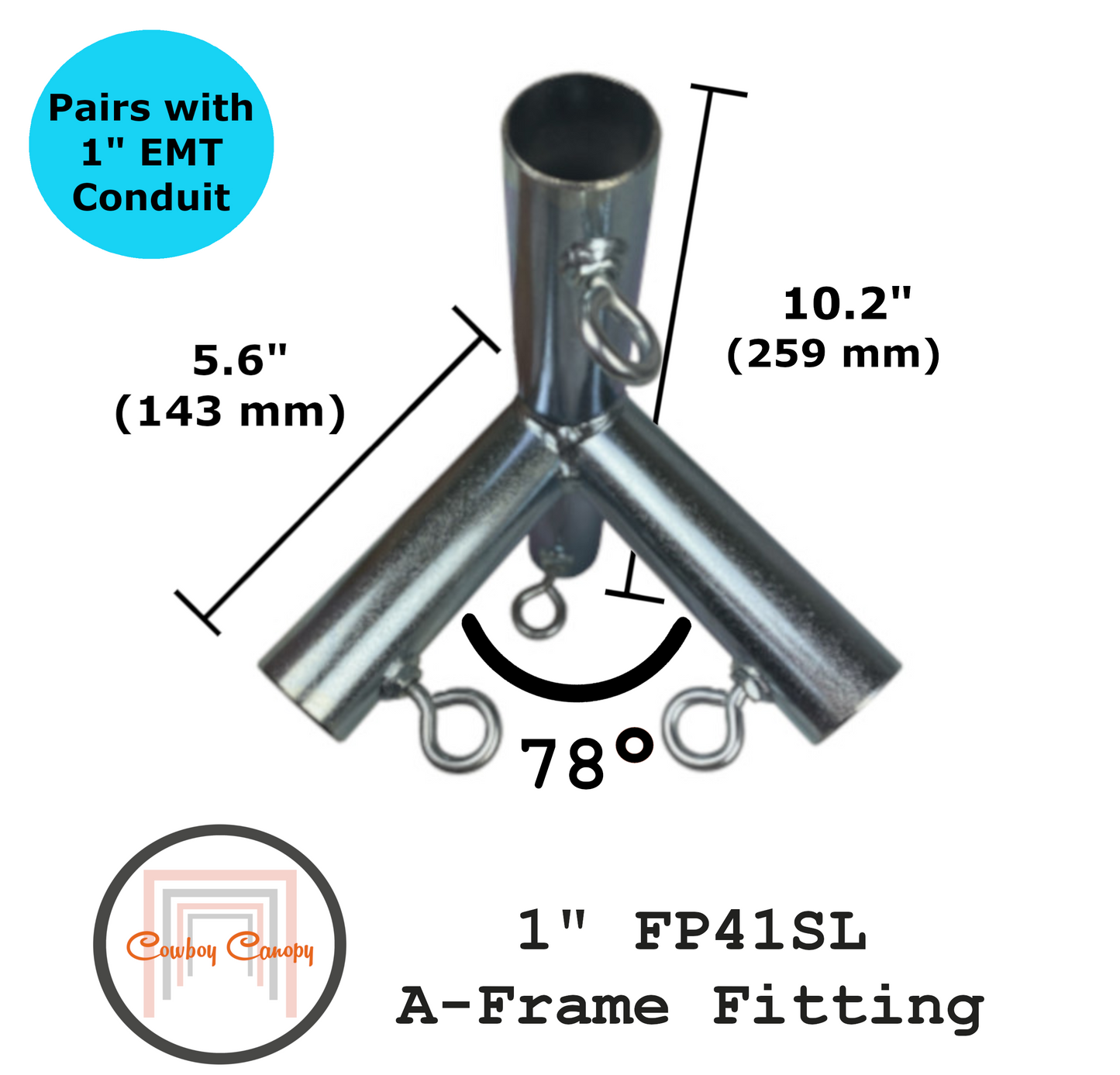

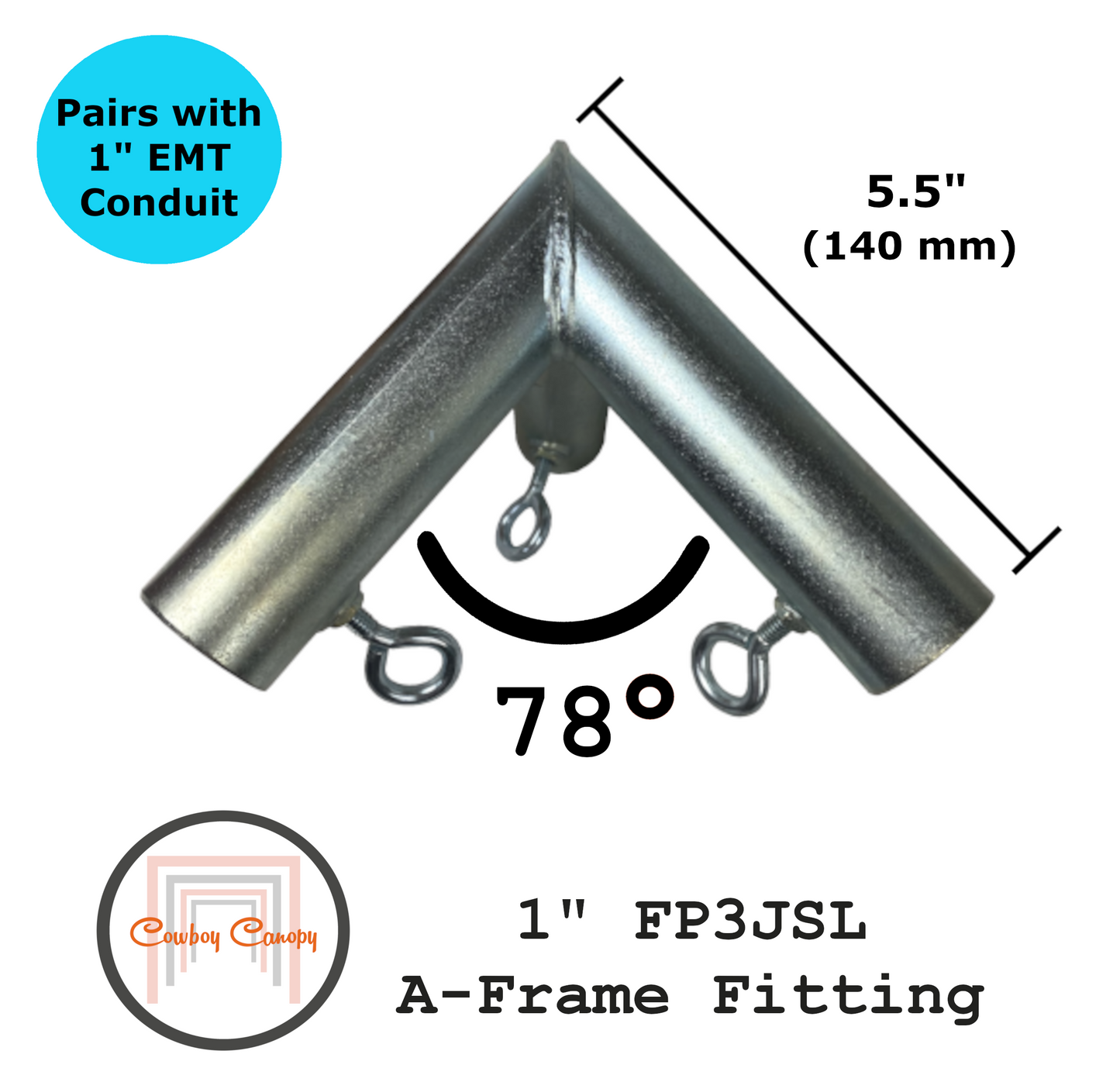

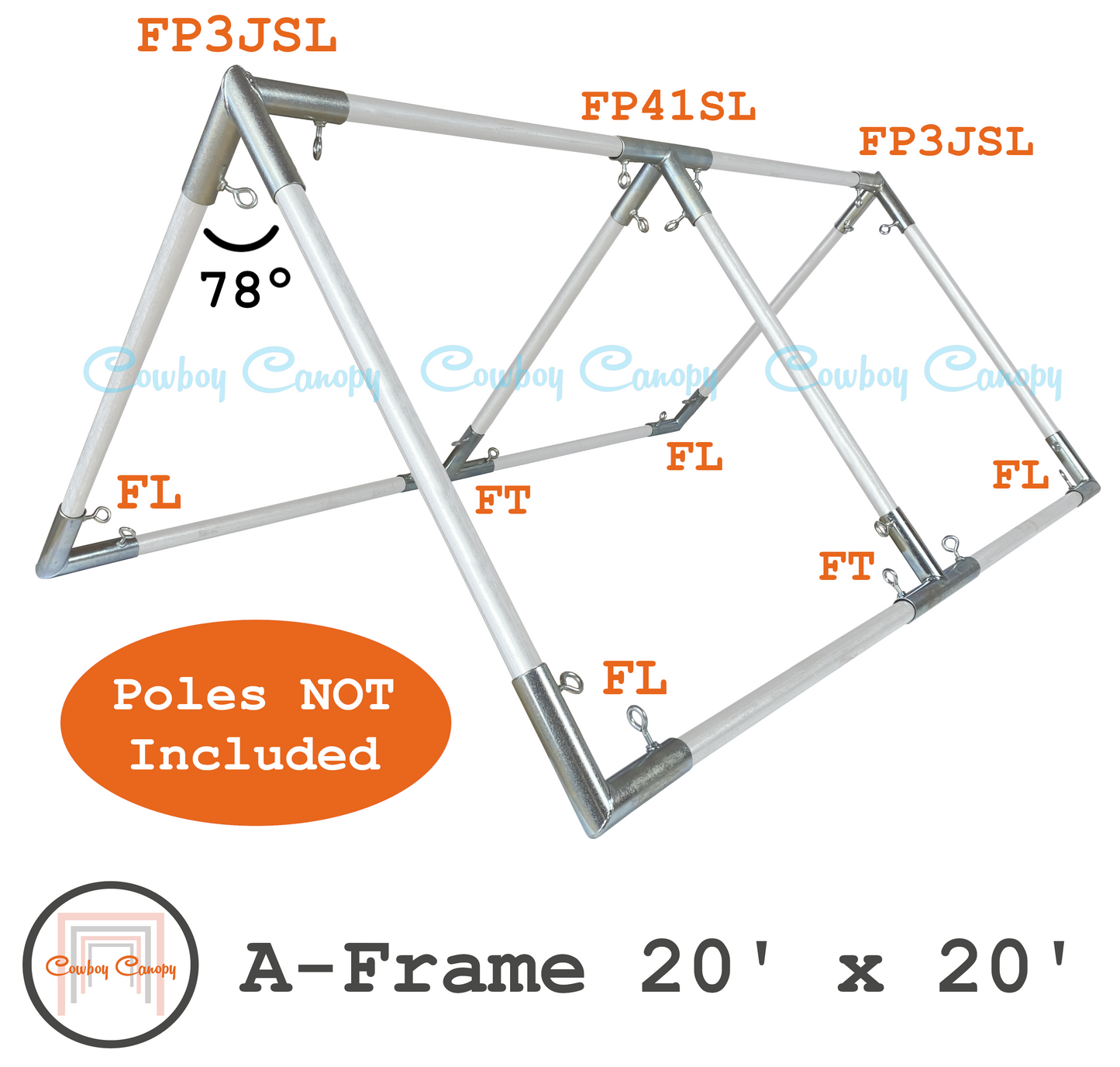

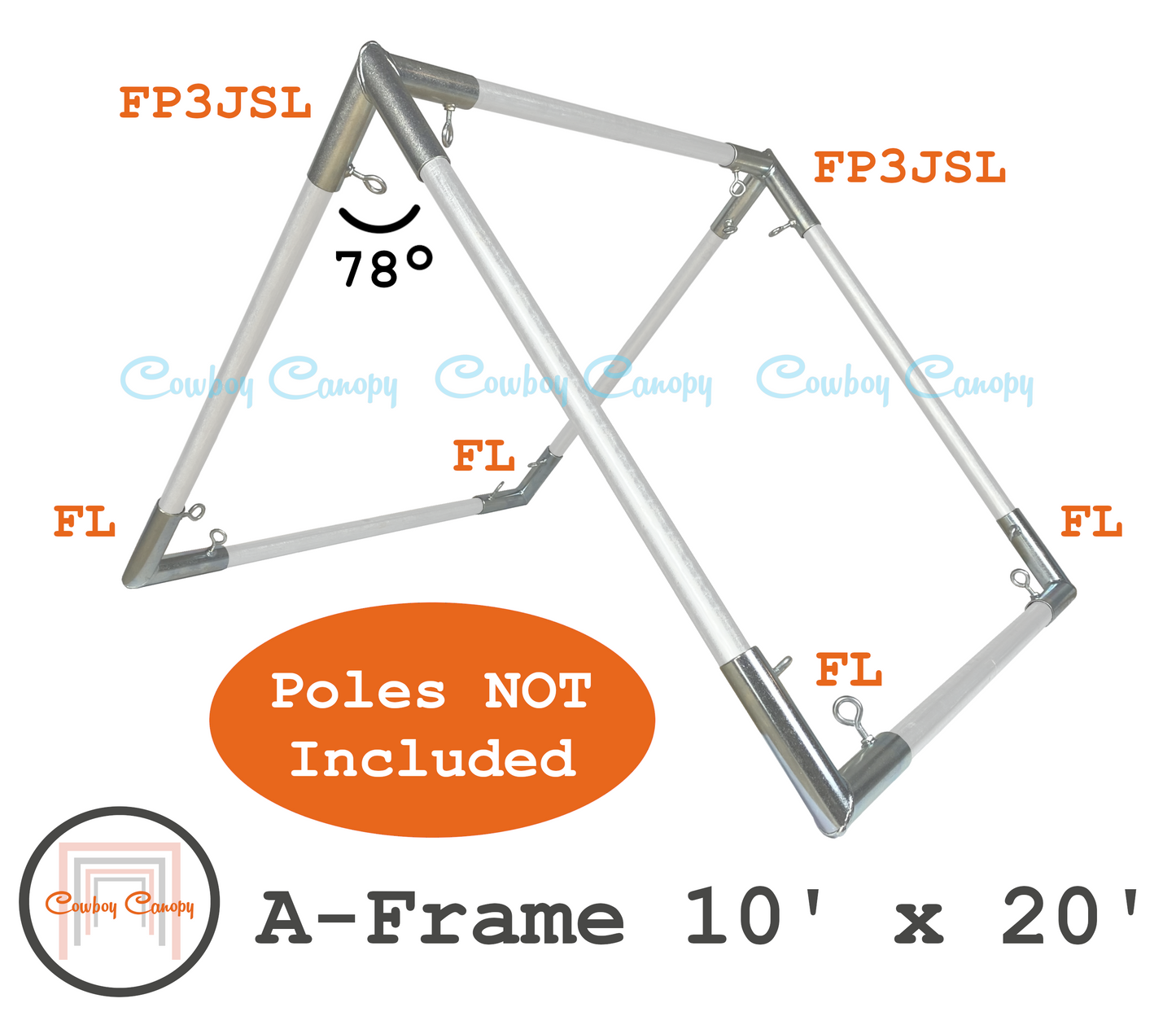

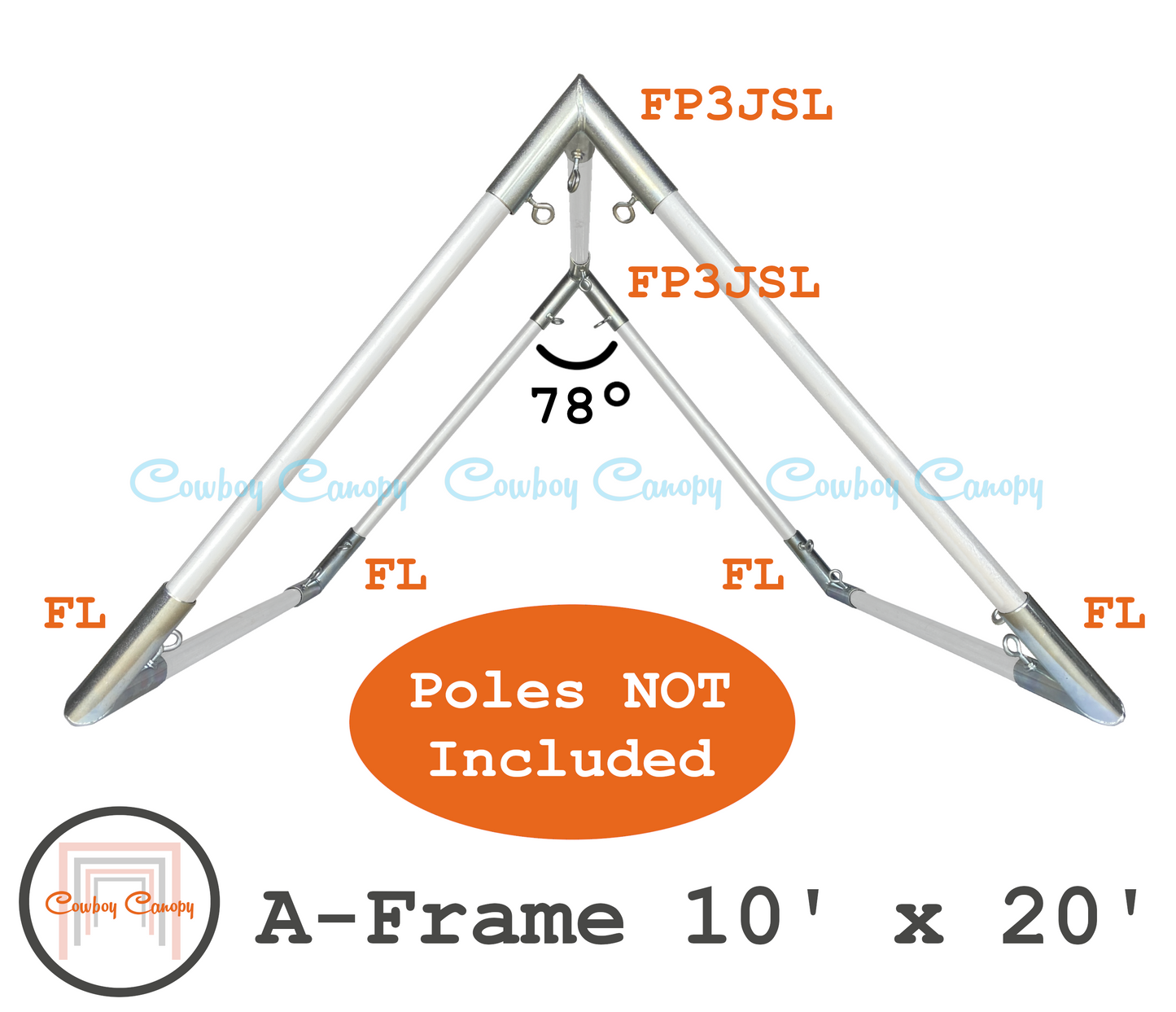

1" A-Frame Kits come complete with all Fittings to build an A-Frame shelter. The A-Frame Peak Roof Fitting has a 78-degree peak angle. The pitch is 18" of rise per foot of run. Custom Options include: Size and Side Wall Fittings. Instructions for assembly are included with all Canopy Kits.
Custom Options:
1. Size - Select your desired structure size indicated by roof square foot coverage. This Kit provides Fittings to space your Canopy poles every 10' down the length. 10' Frame Spacing is the industry standard. This economy spacing is ideal if minimal modifications of EMT poles is preferred (EMT come in standardized 10' lengths).
2. Side Wall Fittings - Add either 1 or 2 Side Walls. The Side Wall upgrade not only ties your Canopy structure legs together for added horizontal strength but will also provide an additional option for attachment points to fixate side covers. To purchase additional Side Wall Fittings beyond the standard upgrade options, search FOL and FOT found under “Canopy Fittings."
Additional Options (Ordered separately - not ordered as Canopy Kit Custom Options)
1. Bar Braces - To reinforce corners and peaks if your structure needs added strength, support and stability.
2. FC, Coupler Connectors - To build your Canopy a little taller/wider than 10' (join two EMT conduit pieces together), use FC Connectors, found under “Canopy Fittings."

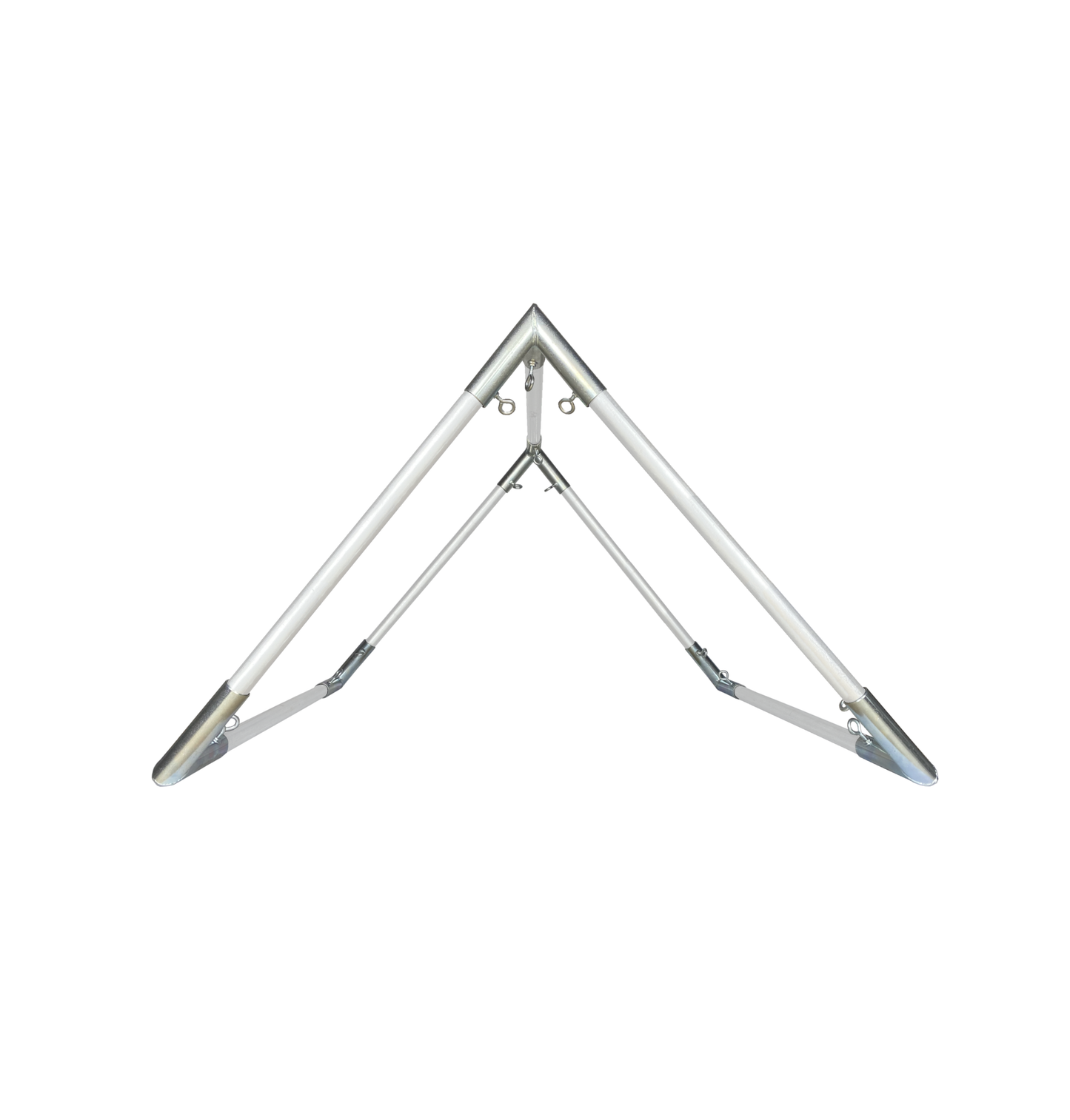

An A-Frame Canopy is an excellent way to provide shelter from the elements, especially in extreme weather conditions like snow and high winds. A-Frames provide maximum drainage and maximum stability. Triangles are known in construction for their strength. They are simple in design and require less poles and Fittings than other canopy styles, which saves money. A-Frames are most commonly used as shelters for livestock, dog houses, outdoor storage, and solar panel stands. Protective structural coverings to consider are; polycarbonate panels, clear or colored tarps, canvas, vinyl, plastic film sheets, shade cloth, shade nets, chicken wire and corrugated metal, other. *Also sold separately.
Please use caution when Canopy building. It is the customer's responsibility during periods of severe weather to take the necessary actions to avoid canopy and/or property damage. Cowboy Canopy is not responsible for Canopy/property damage due to acts of nature. Acts of nature include: wind, rain, snow, floods, severe storms, or any other naturally occurring event.
A-Frame Kit Fitting Quantities

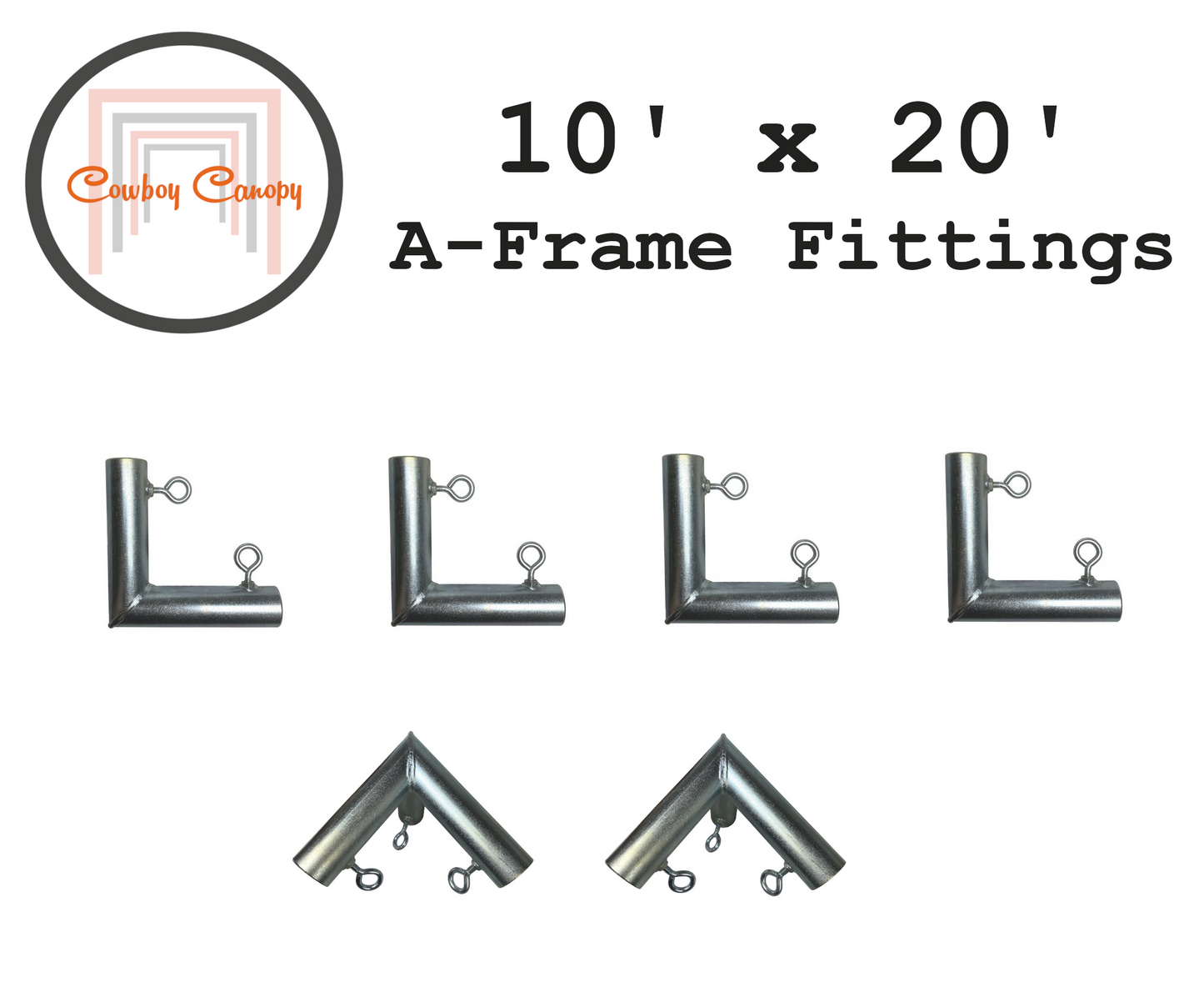

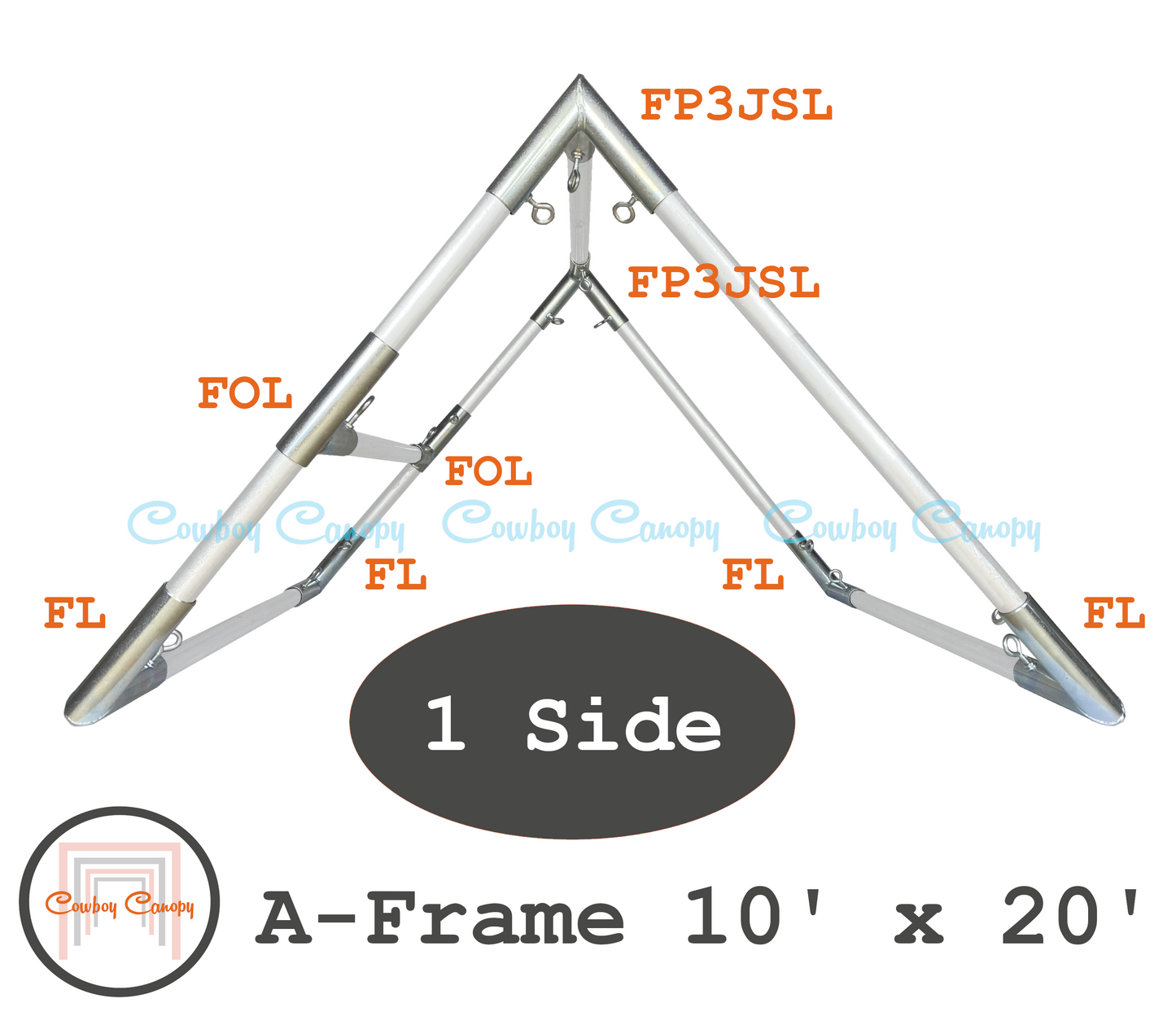

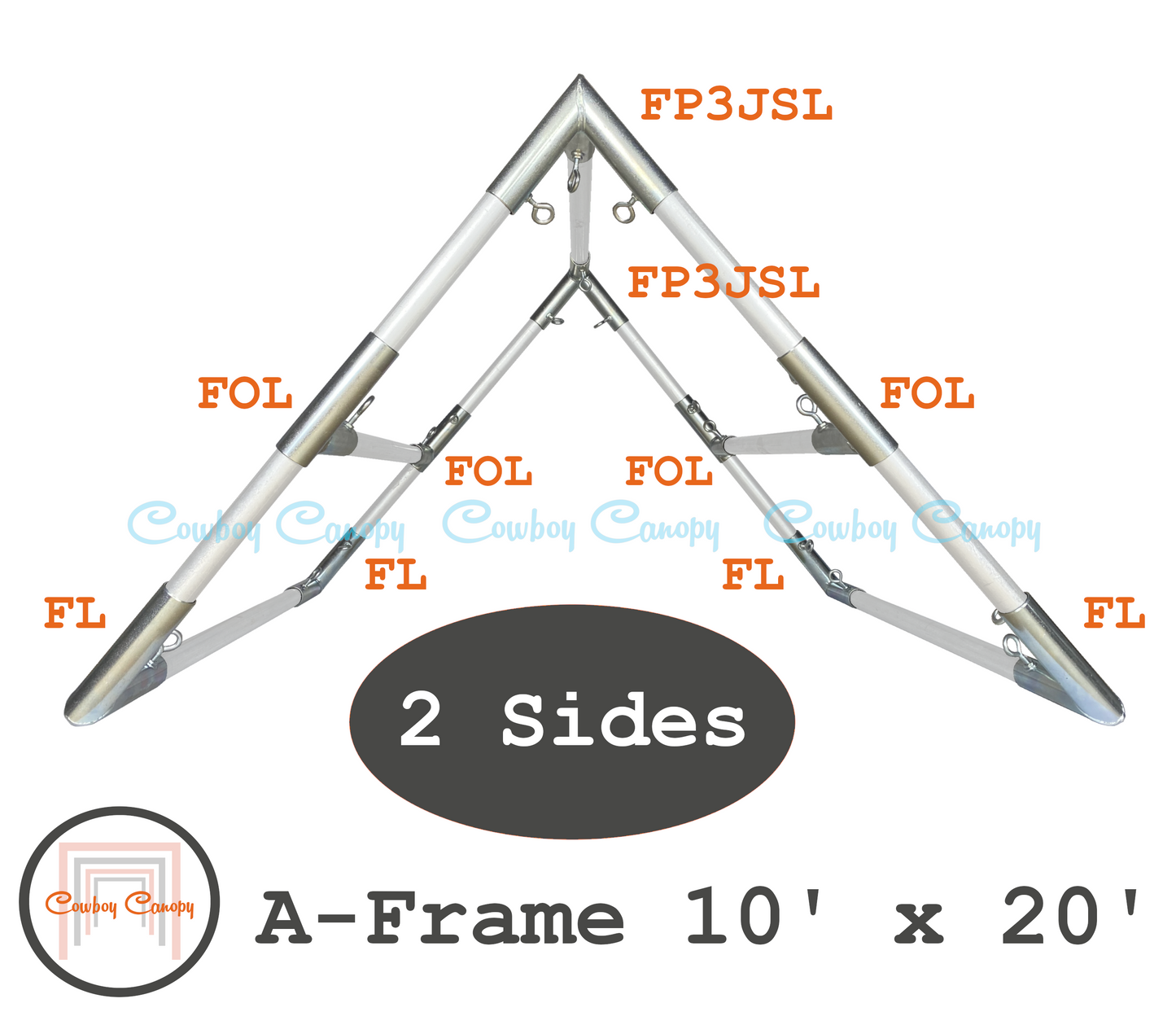

10' x 20' (6 Roof Fittings)
FP3JSL - 2, FL - 4
Side Walls Options - One Side - 2 FOL, Two Sides - 4 FOL

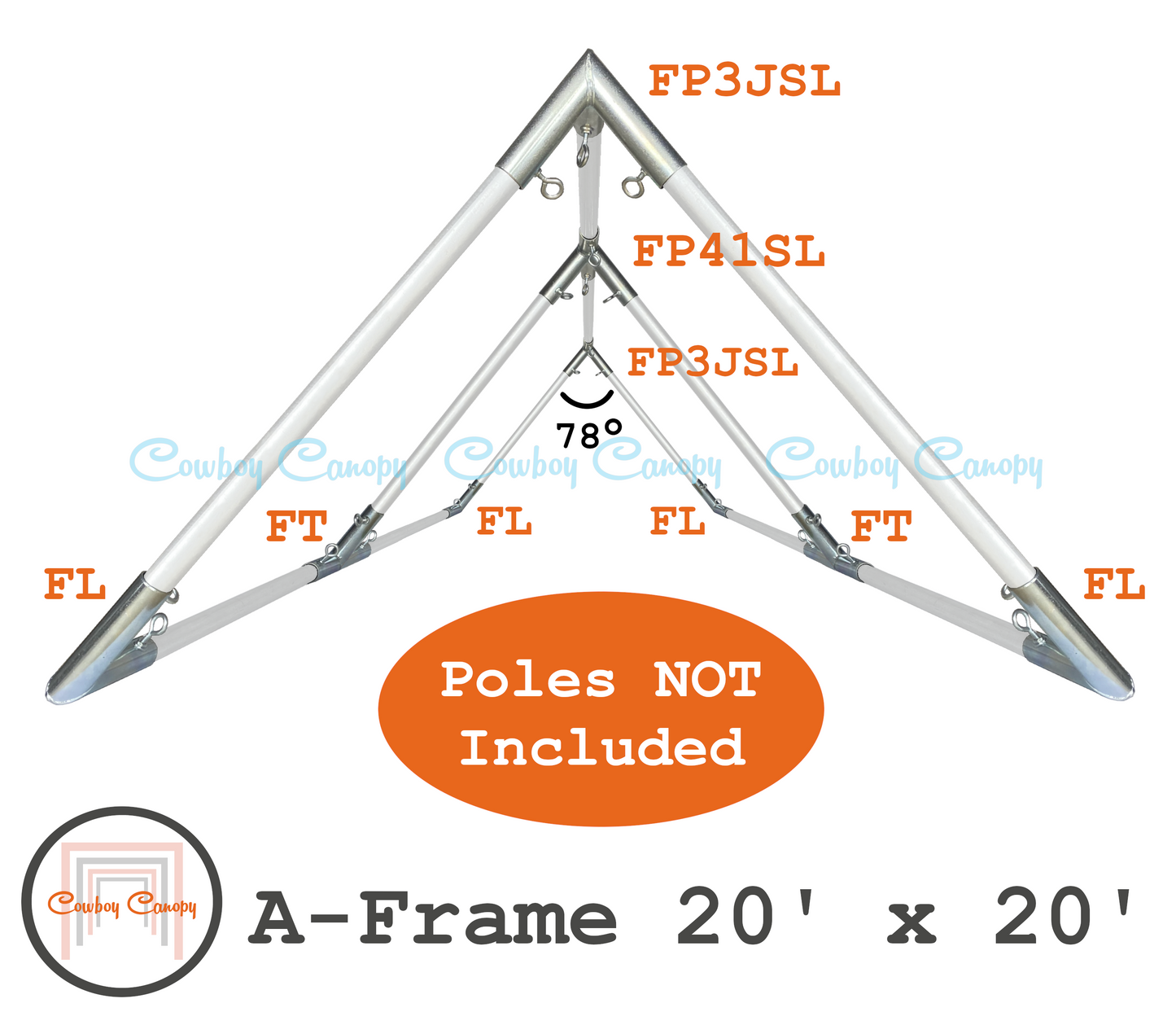

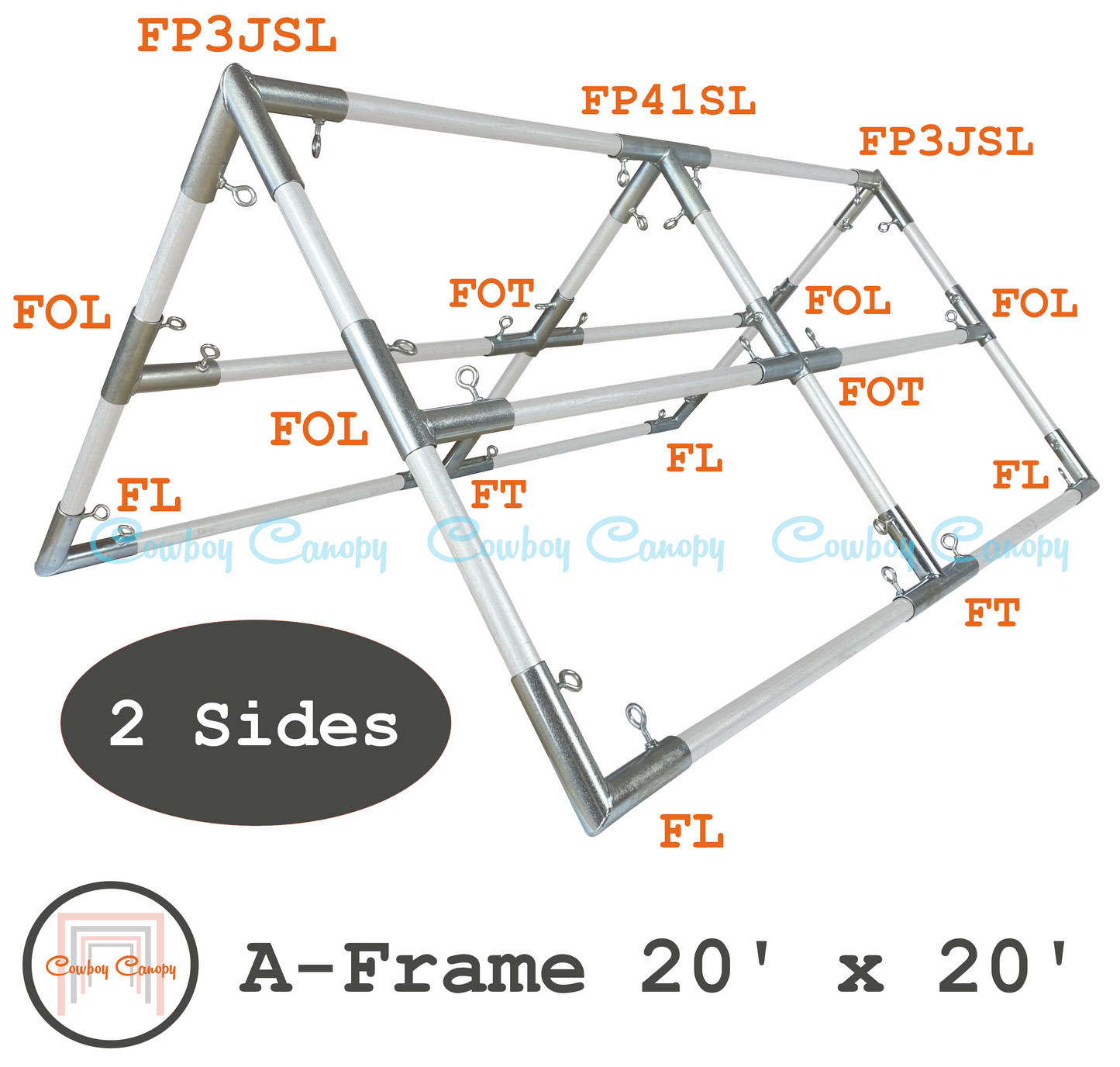

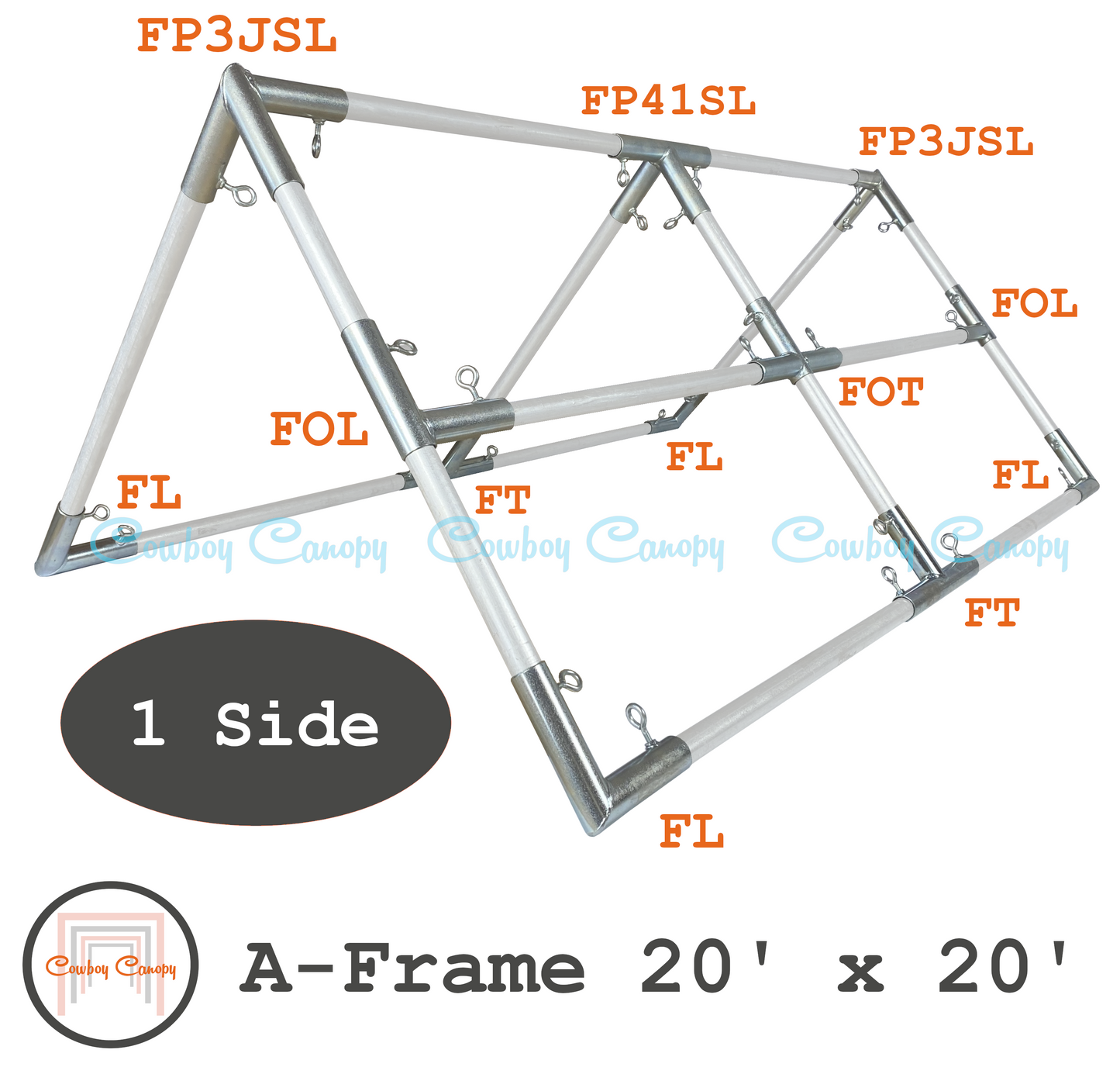

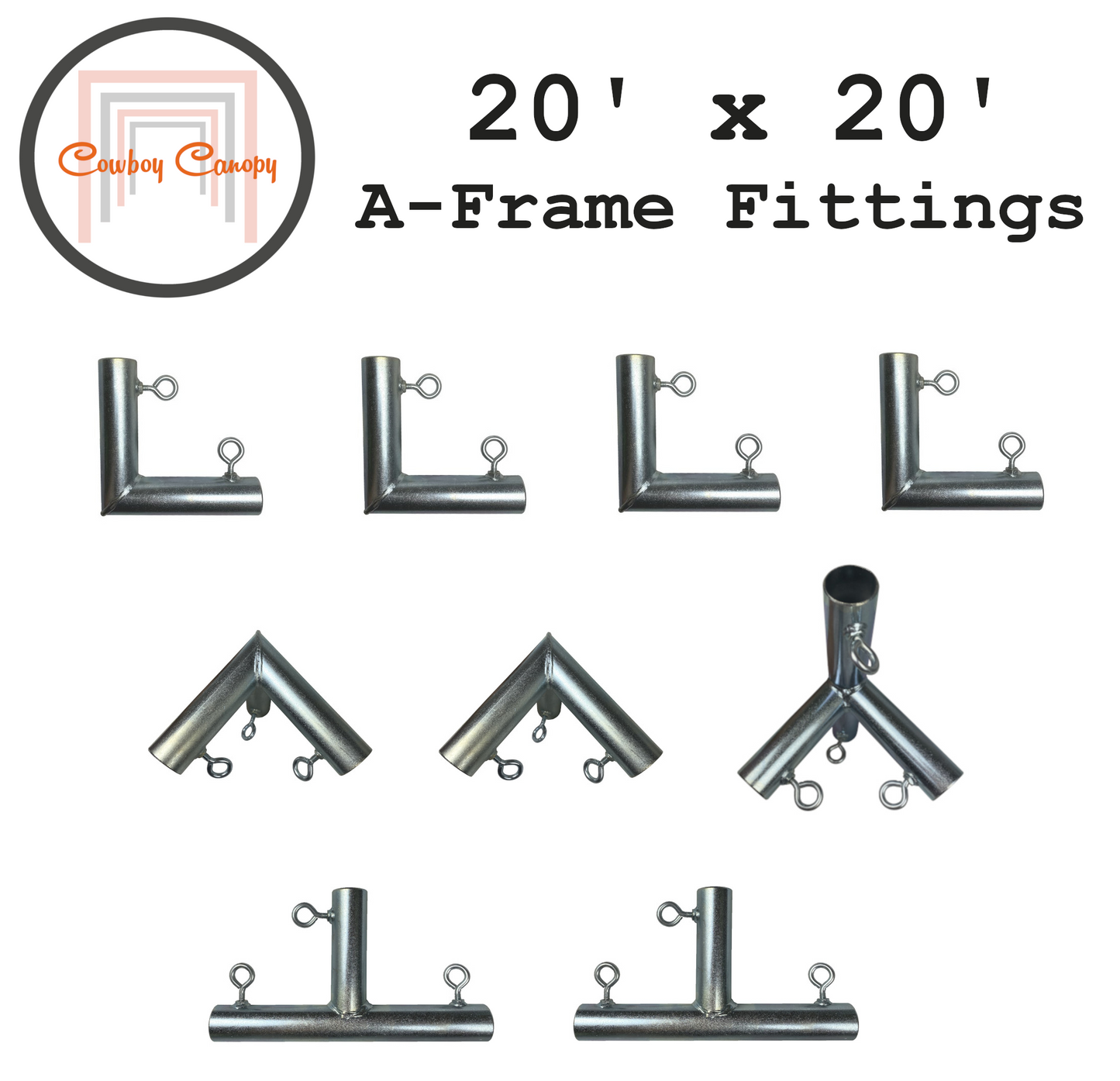

20' x 20' (9 Roof Fittings)

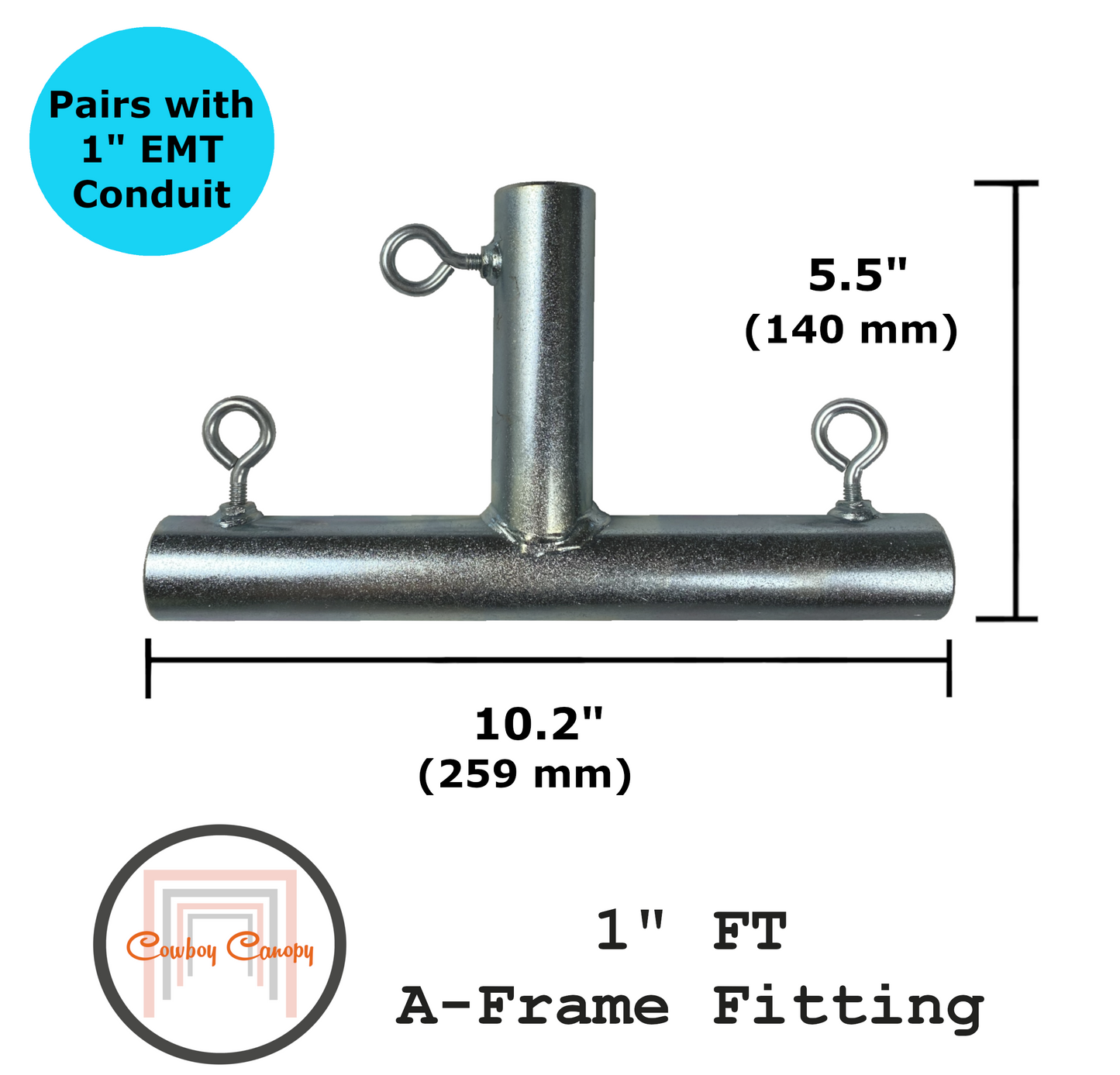

FP3JSL - 2, FP41SL - 1, FL - 4, FT - 2
Side Walls Options - One Side - 2 FOL & 1 FOT, Two Sides - 4 FOL & 2 FOT

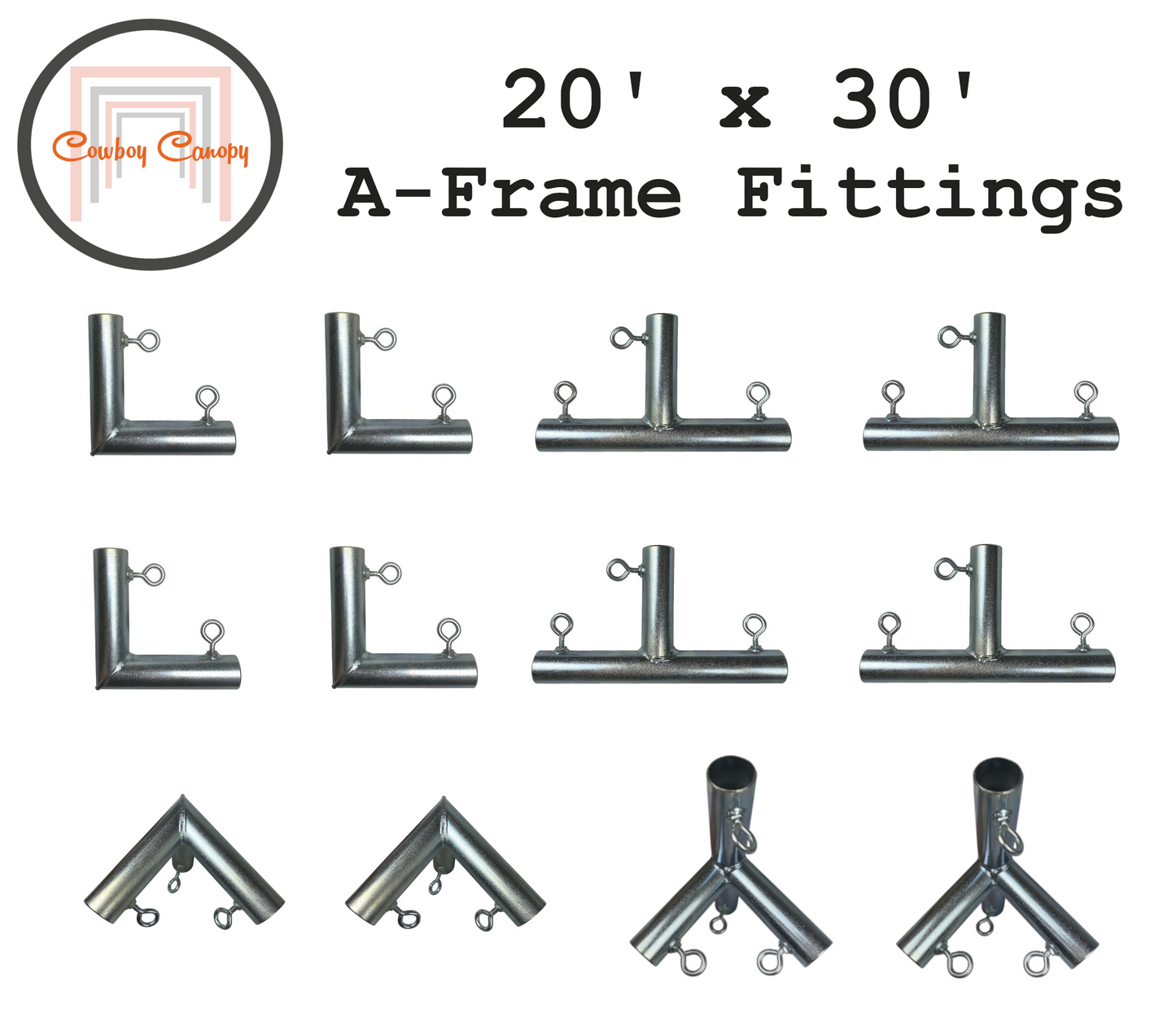

20' x 30' (12 Roof Fittings)
FP3JSL - 2, FP41SL - 2, FL - 4, FT - 4
Side Walls Options - One Side - 2 FOL & 2 FOT, Two Sides - 4 FOL & 4 FOT

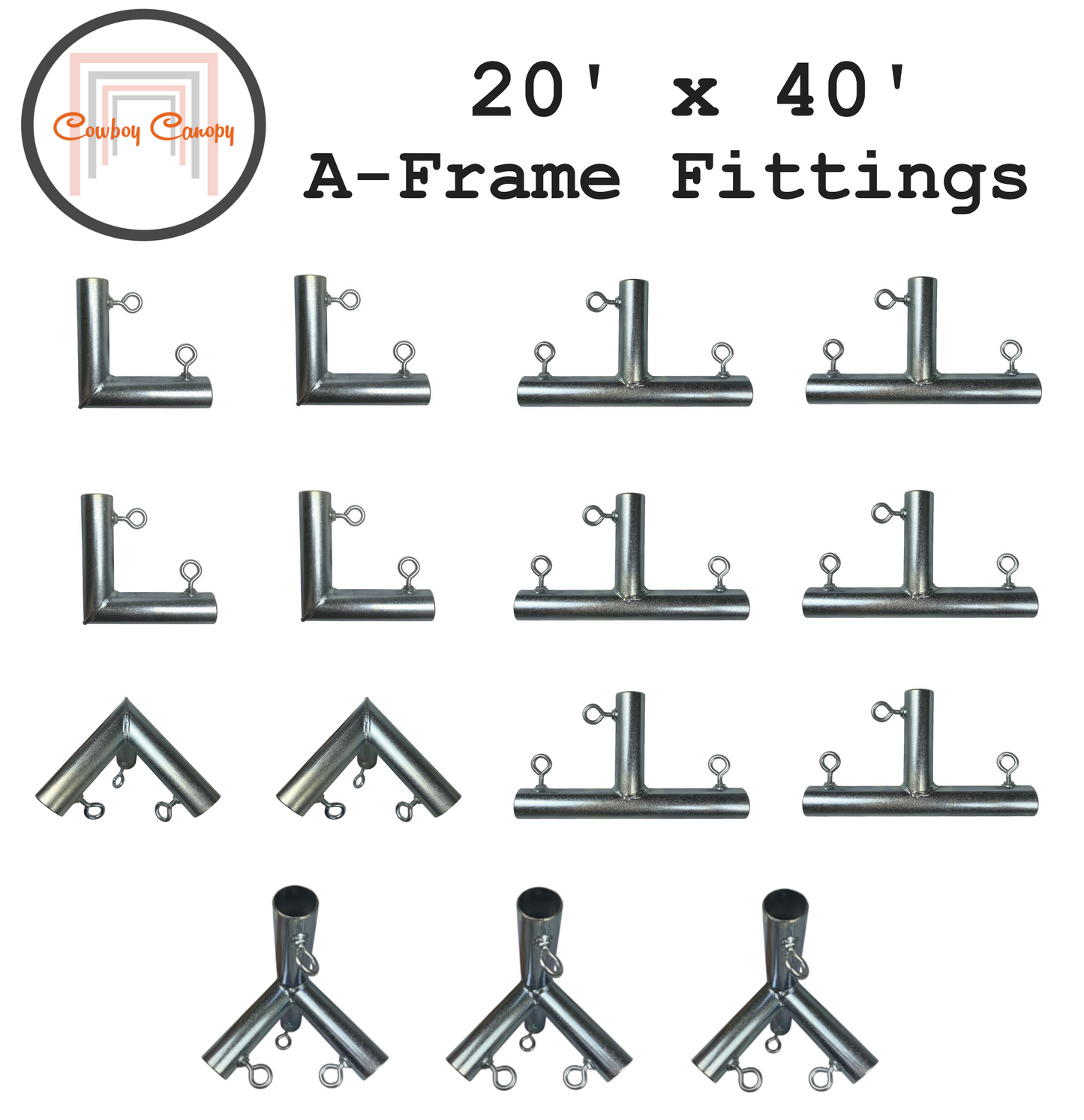

20' x 40' (15 Roof Fittings)
FP3JSL - 2, FP41SL - 3, FL - 4, FT - 6
Side Walls Options - One Side - 2 FOL & 3 FOT, Two Sides - 4 FOL & 6 FOT
Quantities of 1" EMT conduit you will need to purchase to build the following Kits:
10' x 20' - 7 (No Sides), 8 (1 Side), 9 (2 Sides)
20' x 20' - 12 (No Sides), 14 (1 Side), 16 (2 Sides)
20' x 30' - 17 (No Sides), 20 (1 Side), 23 (2 Sides)
20' x 40' - 22 (No Sides), 26 (1 Side), 30 (2 Sides)
