1-1/2" Wall-Mounted Slope Awning Kits (10' Wide)
Cowboy Canopy kits include the FITTINGS only. The electrical conduit poles are NOT included. The main framework poles (EMT- Electrical Metallic Tubing) are sold in standardized 10' lengths at any major hardware store. This kit uses 1-1/4" EMT conduit.

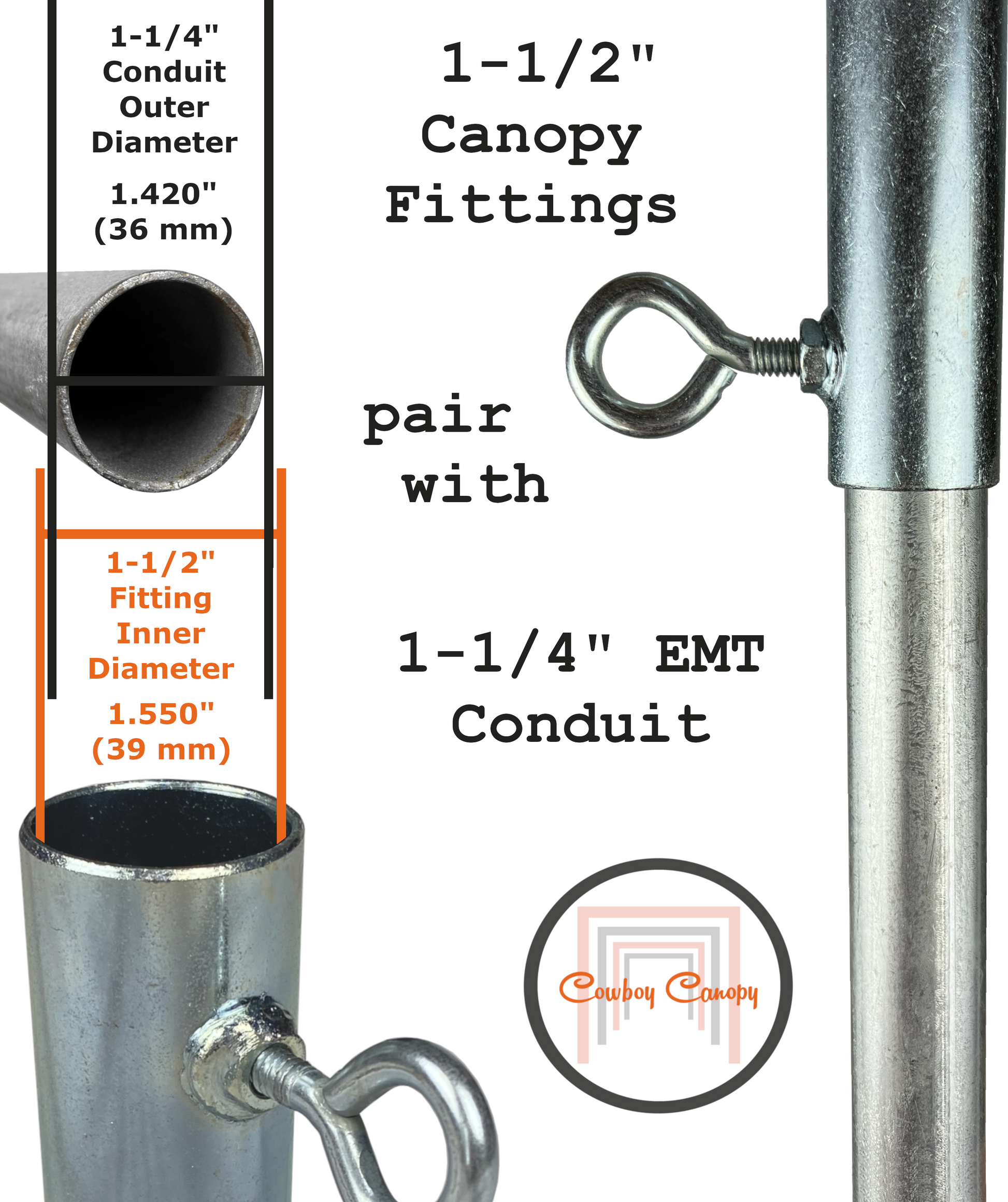

1-1/2" Canopy Fittings pair with 1-1/4" EMT conduit.
Actual Fitting Inside Diameter 1.550" (+/- .02")
Cowboy Canopy fittings are premium canopy fittings. All fittings have eye bolts, which allow for assembly without using tools. Our fittings are made of strong, 15-gauge galvanized steel. The galvanized steel is rust resistant and long-lasting. The welded joints are solid and capable of maintaining integrity under stress. Even the eye bolts have 360-degree welds (no tack welds). Cowboy Canopy fittings will provide you with decades of use.

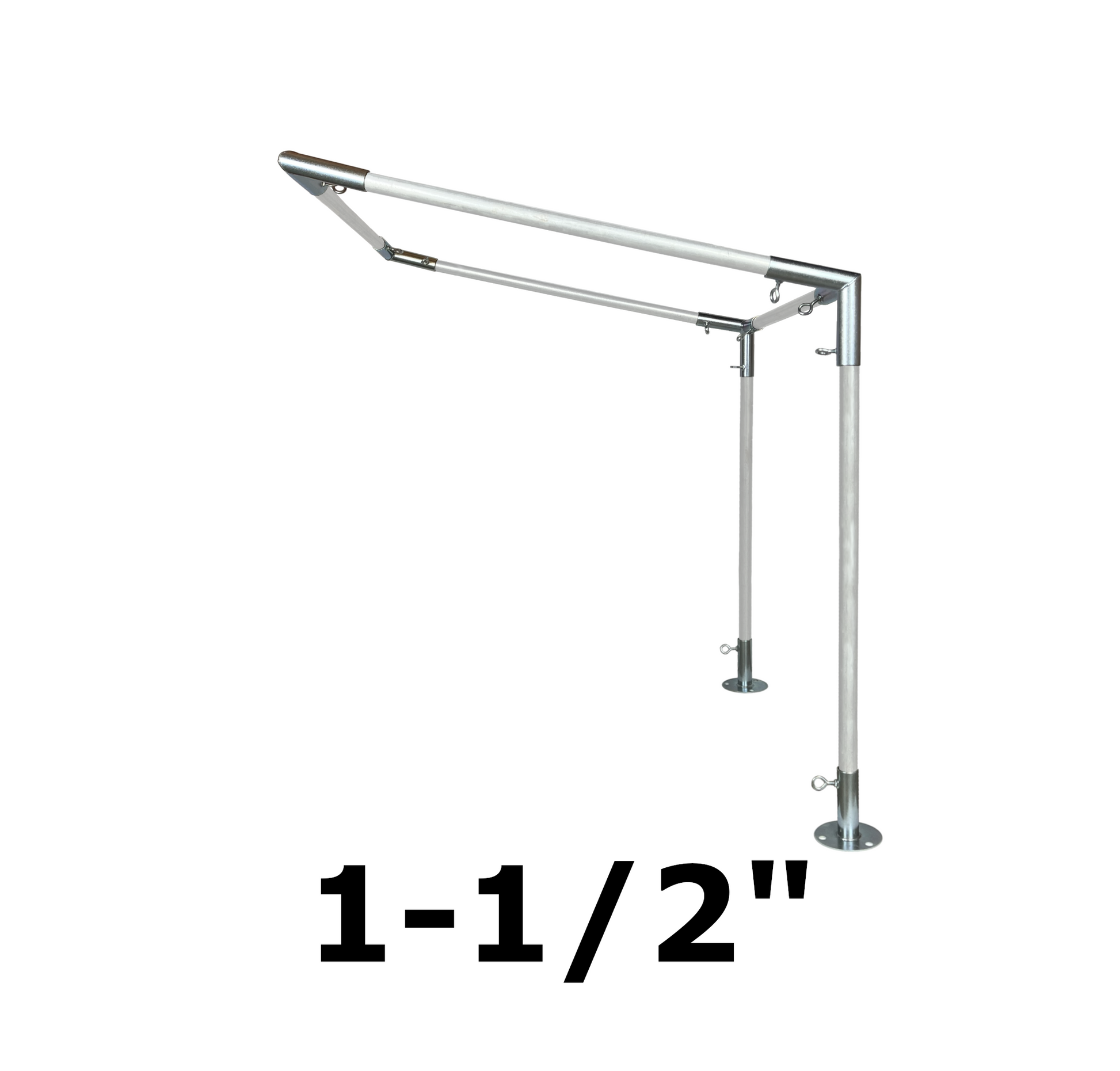

1-1/2" Wall-Mounted Slope Awning Kits come complete with all roof fittings and EMT conduit hangers to attach/hang a slope awning to another building. 4 conduit hangers are included for every 10 feet of awning length. Slope awning roof fittings have a 102-degree angle with a roof pitch of 2.5 inches of rise per foot of run.
Custom options include size, foot pads, and side wall fittings. Instructions for assembly are included with all awning kits.
1. Size - Select your desired structure size indicated by roof square foot coverage. This kit provides fittings to space your canopy poles every 10' down the length. 10' frame spacing is the industry standard. This economy spacing is ideal if minimal modifications of EMT poles is preferred (EMT come in standardized 10' lengths).
2. Foot Pads - For temporary, semi-permanent and permanent structures, foot pads provide stabilization and ground anchor points for your canopy. The base of each foot pad has four pre-drilled holes. One in the center designed for rainwater drainage and three on the perimeter allowing anchor nails or hardware of your choice to secure your structure to the ground.
3. Side Wall Fittings - Add the option of 1 side wall. The side wall upgrade not only ties your canopy legs together for added horizontal strength but will also provide an additional option for attachment points to fixate side covers. To purchase additional side wall fittings beyond the standard upgrade options, search for FOL, FOT, and FO3 canopy fittings.
A Wall-Mounted Slope Awning is an excellent way to provide protection from sun and rain, especially when unilateral water drainage is desired. Awnings are designed to attach directly to a building and route drainage away from the building it is attached to. This economical design saves money because less canopy fittings and poles are needed than when building a stand-alone canopy. However, a slope awning is NOT recommended for snow. The slope awning pitch (102 Degrees) is not steep enough to cause shedding of accumulated snowfall like a high slope/peak pitch (120 Degrees). If you are seeking protection from snow, use a high peak or high slope instead.
Please use caution when canopy building. It is the customer's responsibility during periods of severe weather to take the necessary actions to avoid canopy and/or property damage. It is strongly recommended to anchor your canopy to the ground. This can be done in many different ways. A common method is to use foot pads. All foot pads have three holes on their base plates for the purpose of anchorage. Anchor nails can be hammered through these holes and into the ground to anchor your canopy down. Cowboy Canopy is not responsible for canopy/property damage due to acts of nature. Acts of nature include wind, rain, snow, floods, severe storms, or any other naturally occurring event.
Wall-Mounted Slope Awning Kits Fitting/Hanger Quantities
10' x 10' (4 Roof Fittings and 4 Conduit Hangers)
P3J - 2, FL - 2, Conduit Hangers - 4
10' x 20' (6 Roof Fittings and 8 Conduit Hangers)
P3J - 2, FL - 2, P41 - 1, FT - 1, Conduit Hangers - 8
10' x 30' (8 Roof Fittings and 12 Hangers)
P3J - 2, FL - 2, P41 - 2, FT - 2, Conduit Hangers - 12
10' x 40' (10 Roof Fittings and 16 Hangers)
P3J - 2, FL - 2, P41 - 3, FT - 3, Conduit Hangers - 16
Quantities of 1-1/4" EMT conduit you need to purchase to build the following kits:
10' x 10' - 6 (No Sides), 7 (1 Side)
10' x 20' - 10 (No Sides), 12 (1 Side)
10' x 30' - 14 (No Sides), 17 (1 Side)
10' x 40' - 18 (No Sides), 22 (1 Side)
