3/4" Slope Canopy Kits (10' Wide)
Cowboy Canopy kits include the FITTINGS only. The electrical conduit poles are NOT included. The main framework poles (EMT- Electrical Metallic Tubing) are sold in standardized 10' lengths at any major hardware store. This kit uses 3/4" EMT conduit.

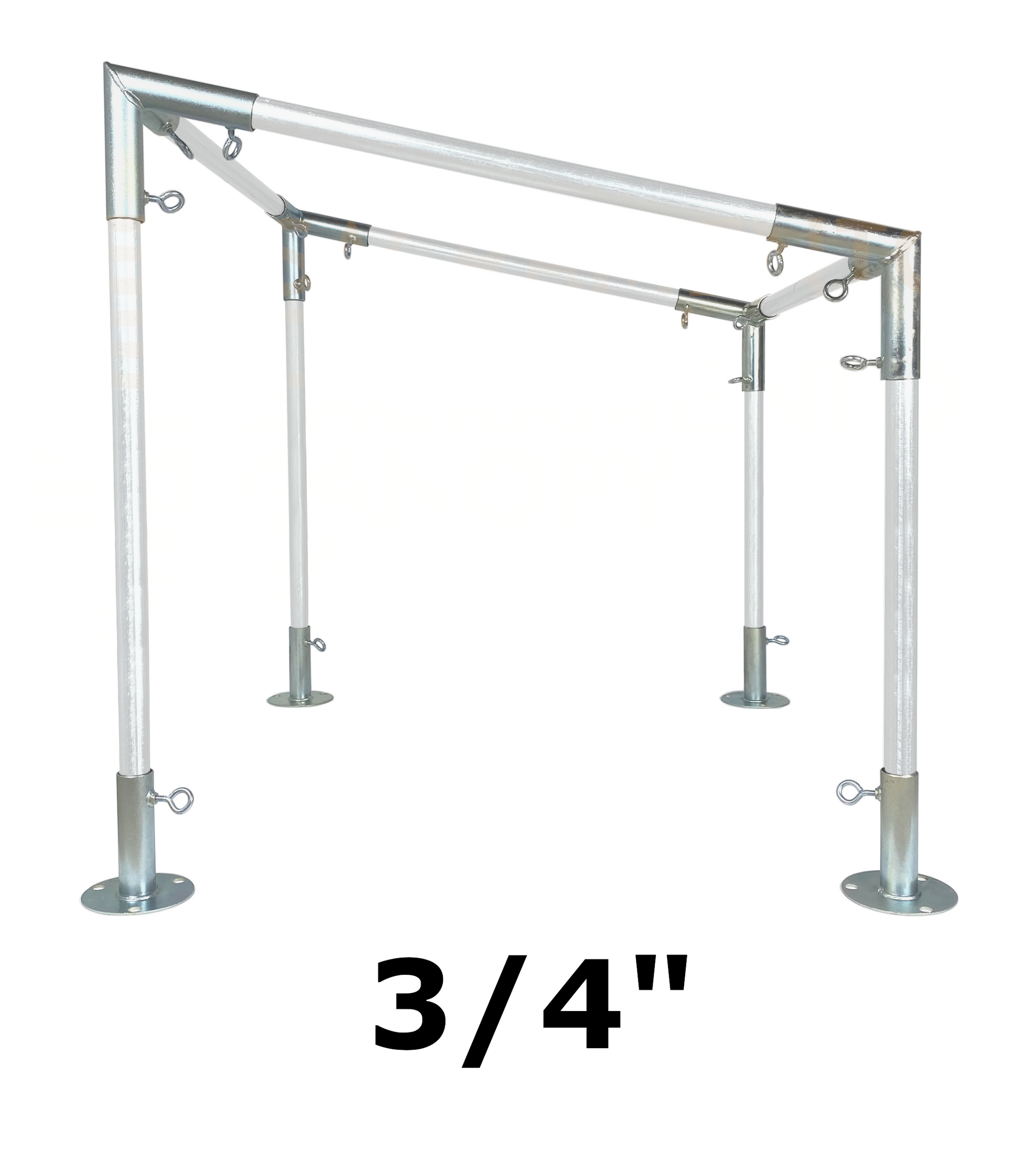

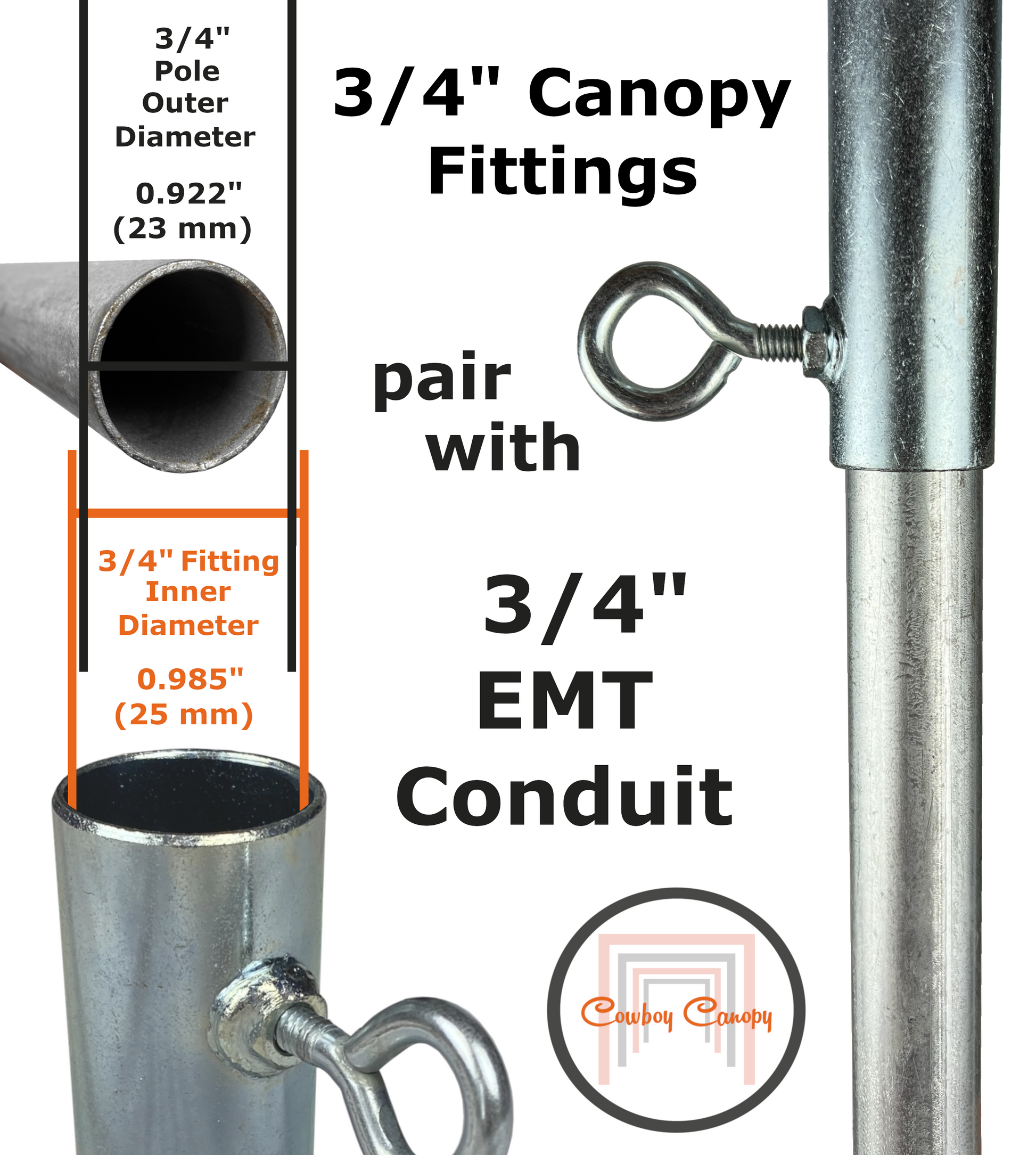

3/4" Canopy Fittings pair with 3/4" EMT conduit.
Actual Fitting Inside Diameter 0.985" (+/- .02")
Cowboy Canopy fittings are premium canopy fittings. All fittings have eye bolts, which allow for assembly without using tools. Our fittings are made of strong, 15-gauge galvanized steel. The galvanized steel is rust resistant and long-lasting. The welded joints are solid and capable of maintaining integrity under stress. Even the eye bolts have 360-degree welds (no tack welds). Cowboy Canopy fittings are built to last for decades.

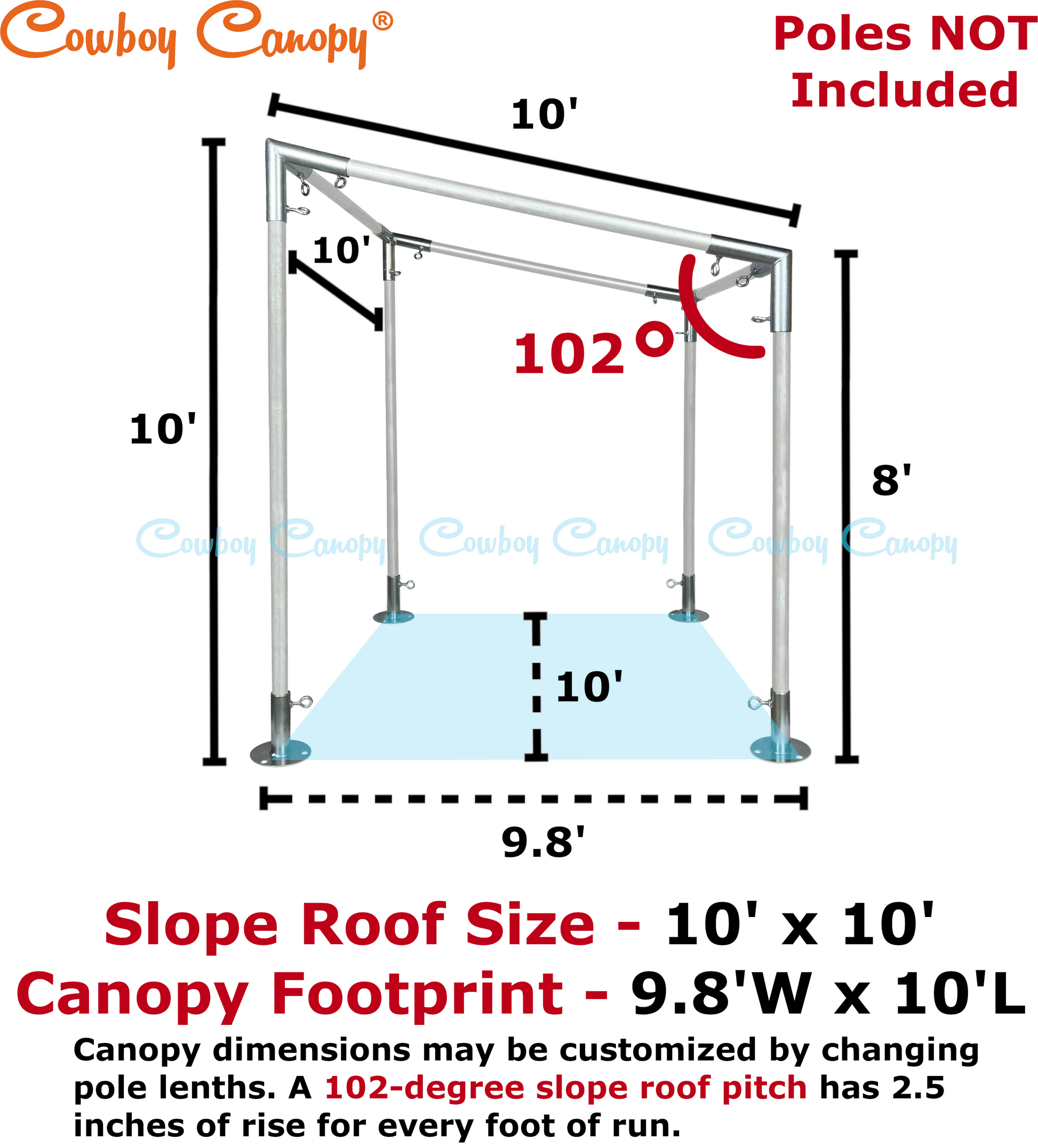

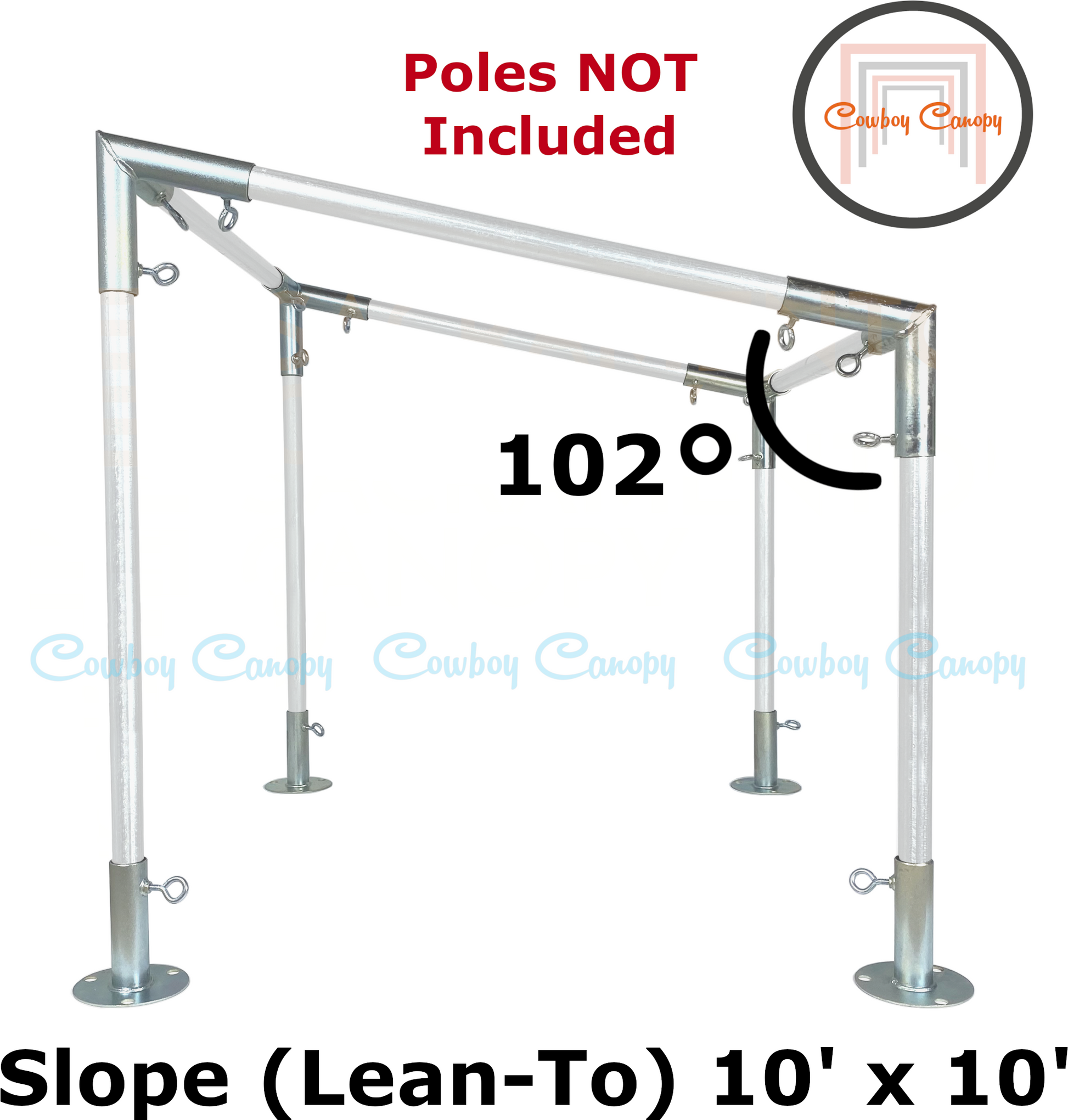

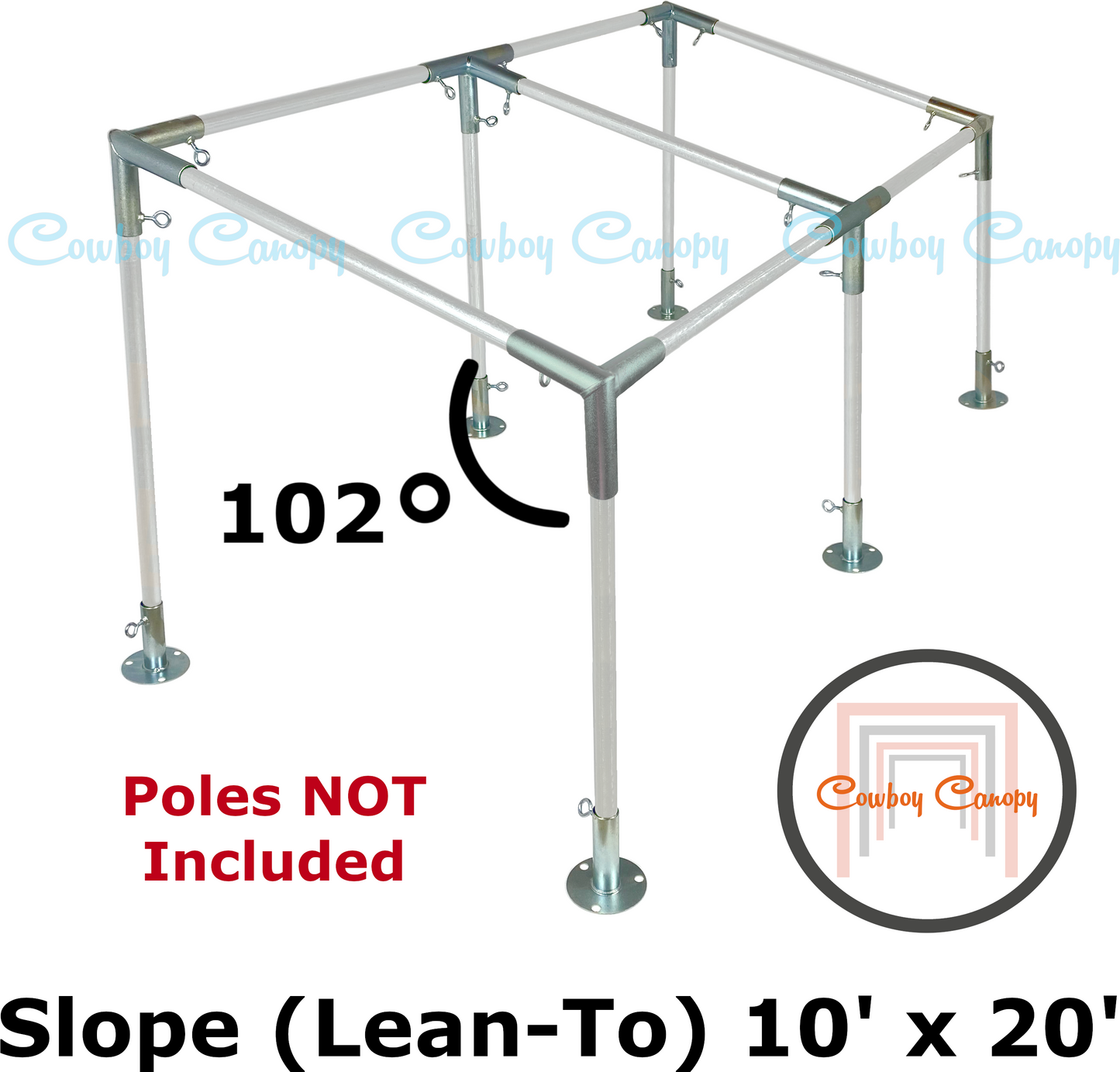

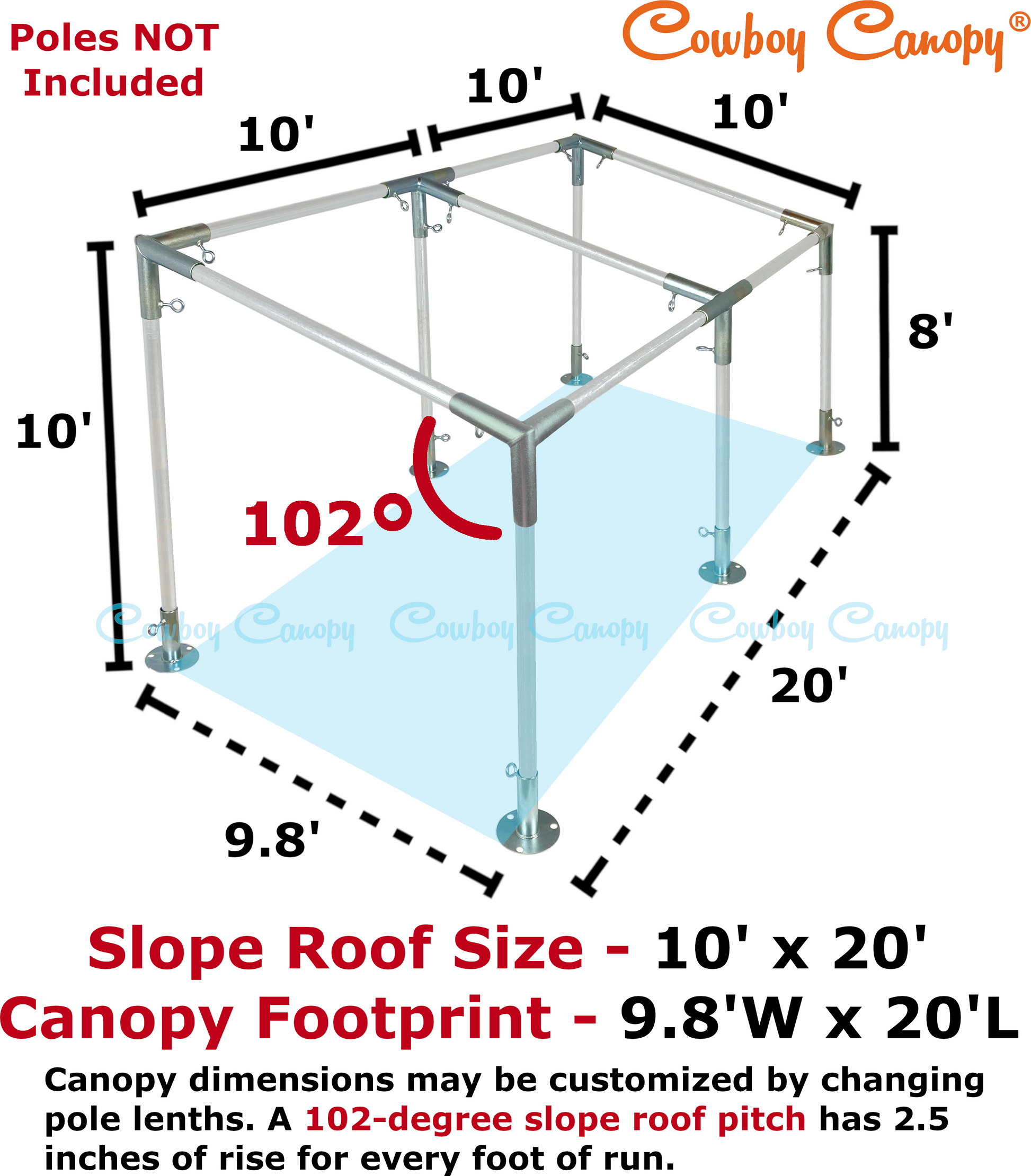

3/4" Slope (Lean-To) Roof Kits come complete with all roof fittings to build a slope canopy. Slope roof fittings have a 102-degree angle with a roof pitch of 2.5" of rise per foot of run. Custom options include size, foot pads, and side wall fittings. Instructions for assembly are included with all canopy kits.
Custom Options:
1. Size - Select your desired structure size indicated by roof square foot coverage. This kit provides fittings to space your canopy poles every 10' down the length. 10' frame spacing is the industry standard. This economy spacing is ideal if minimal modification of EMT poles is preferred (EMT come in standardized 10' lengths).
2. Foot Pads - For temporary, semi-permanent and permanent structures, foot pads provide stabilization and ground anchor points for your canopy structure. The base of each foot pad has four pre-drilled holes. One in the center designed for rainwater drainage and three on the perimeter allowing anchor nails or hardware of your choice to secure your structure to the ground.

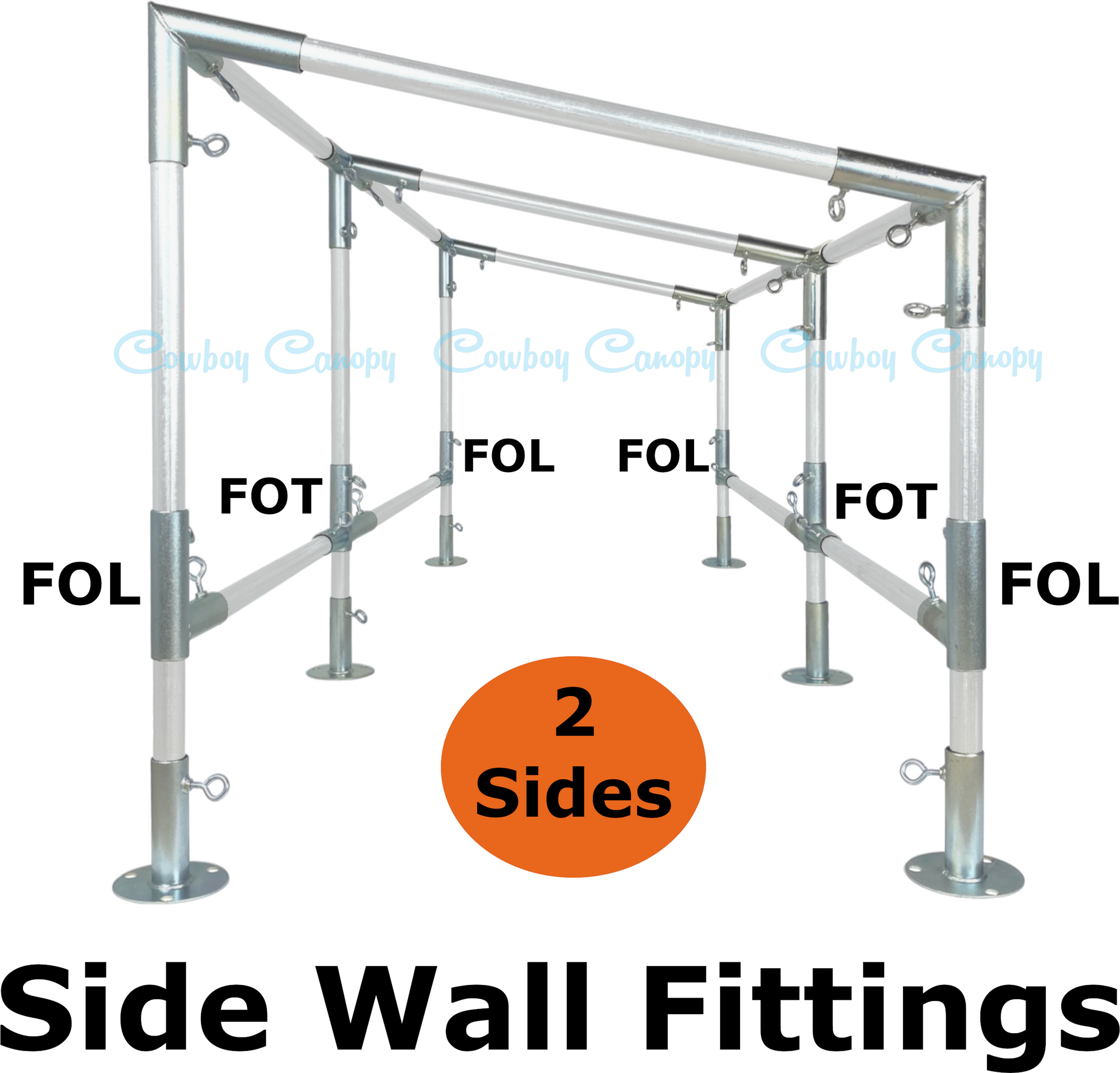

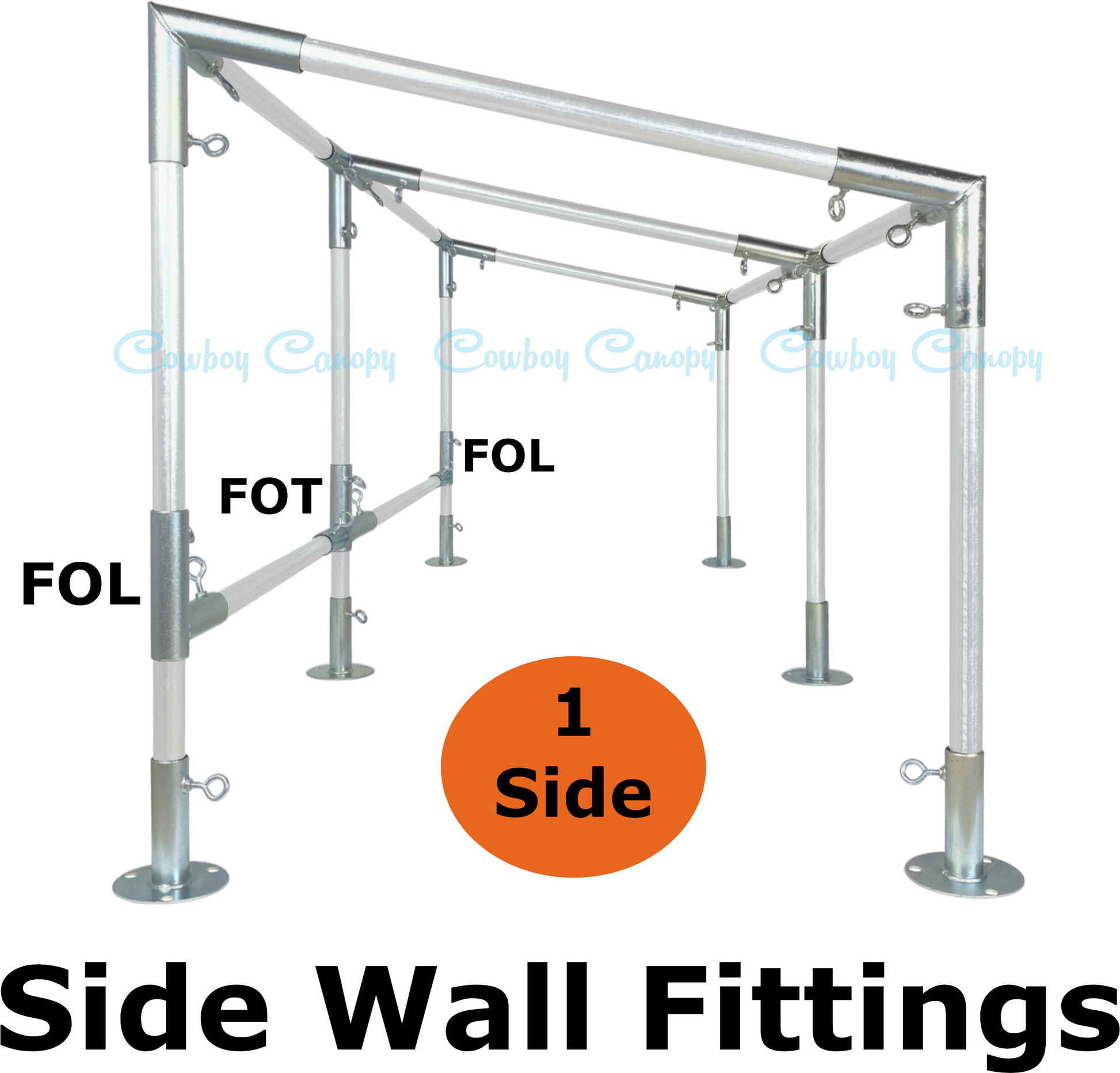

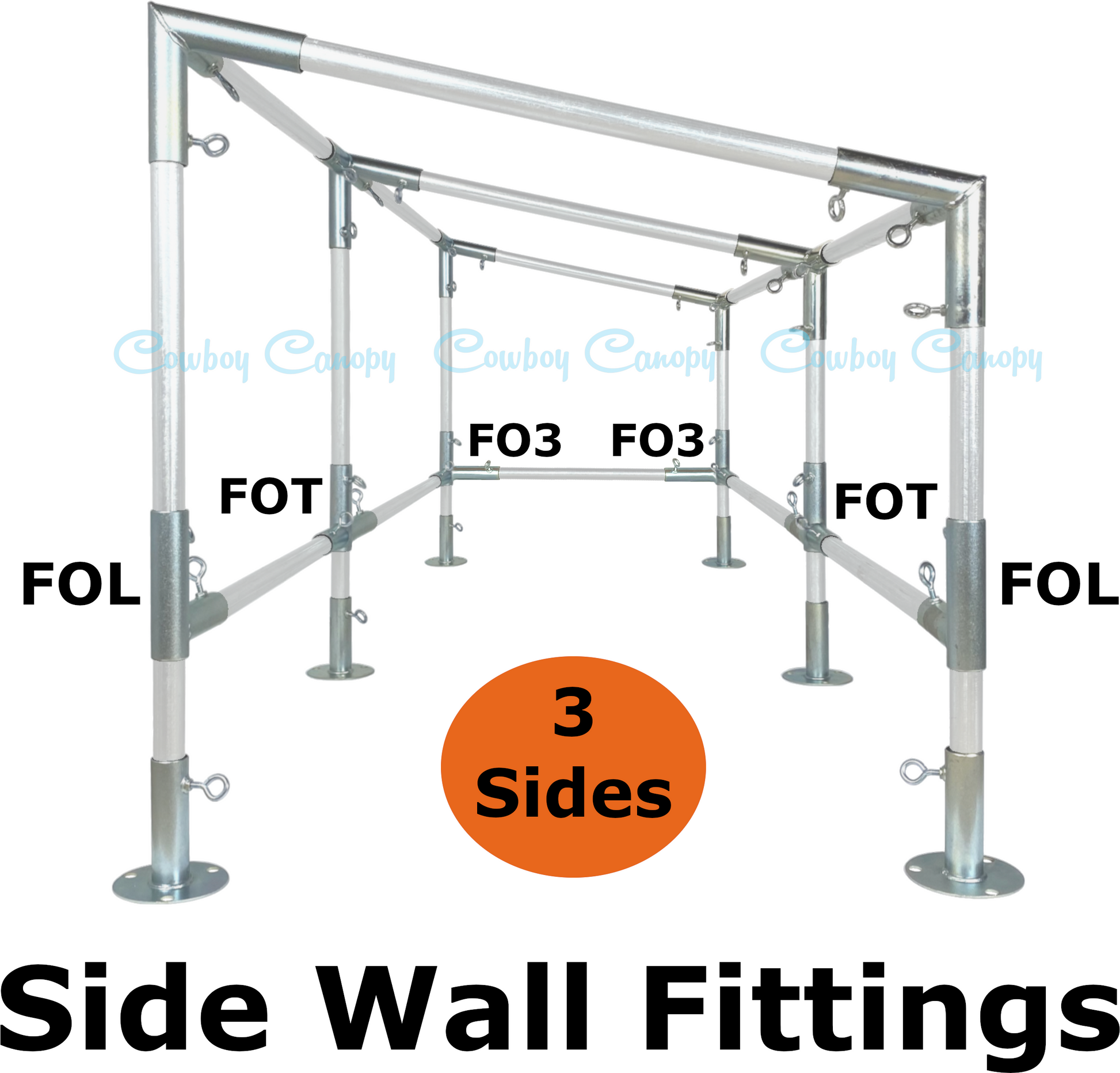

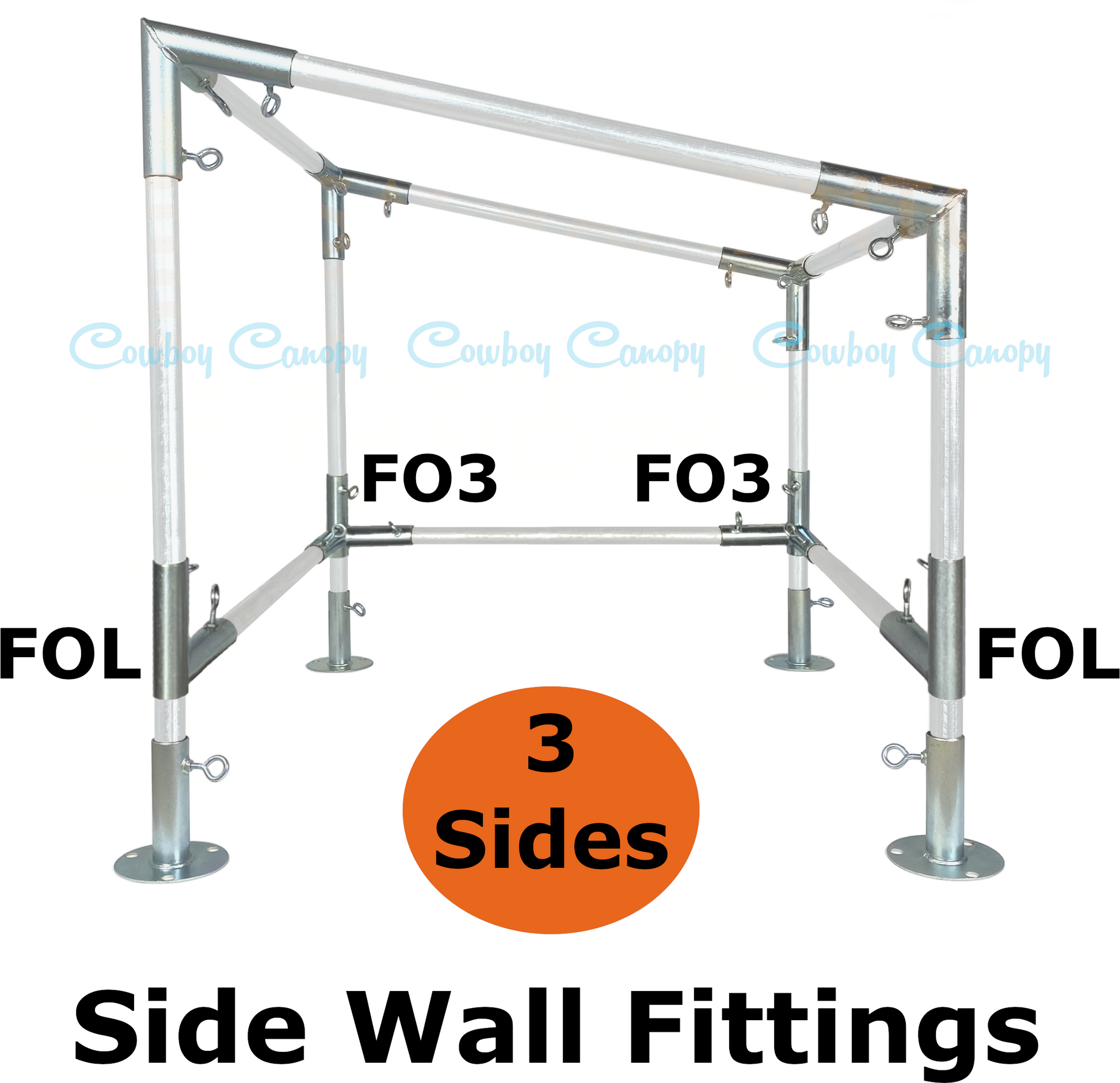

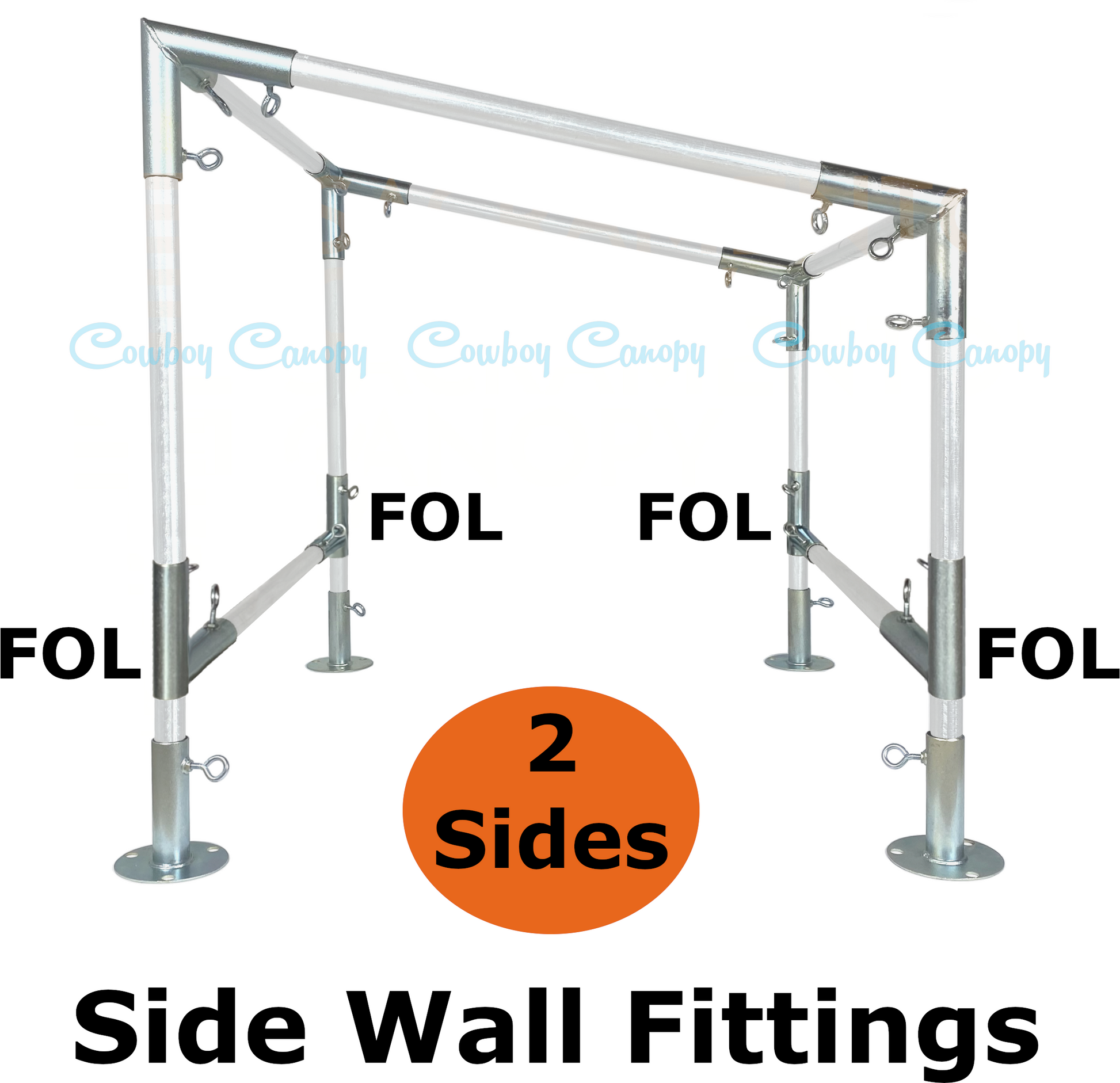

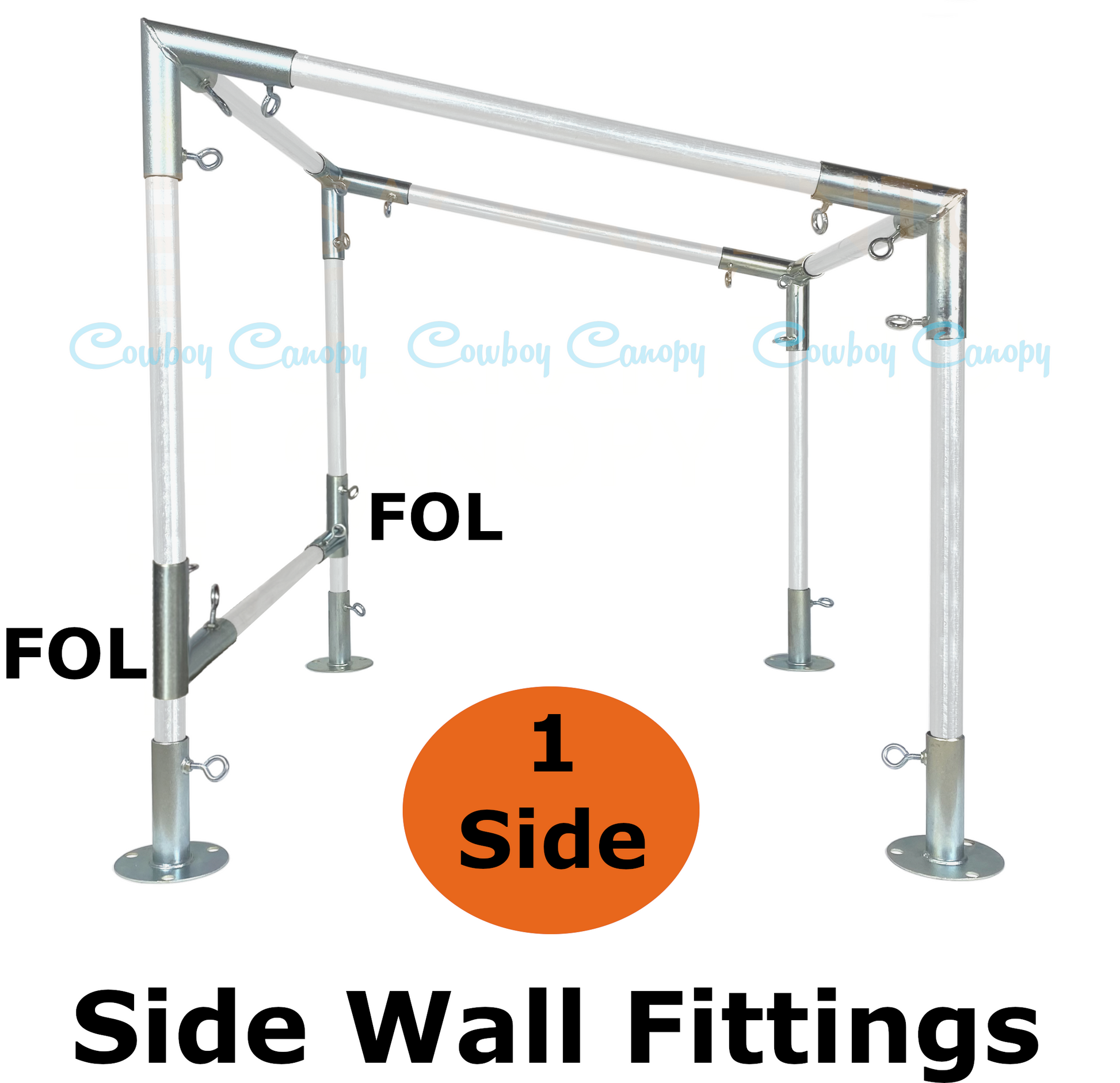

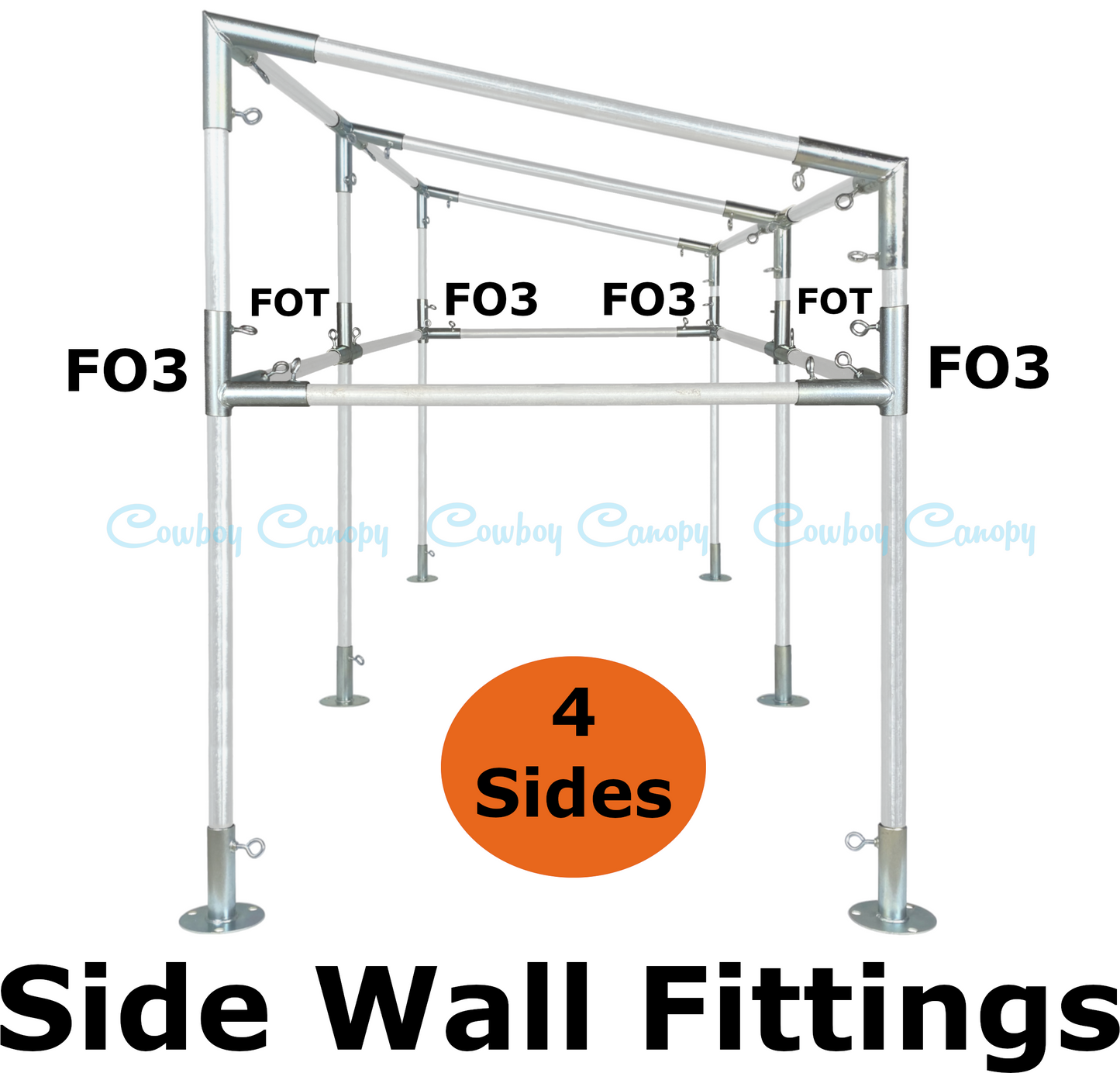

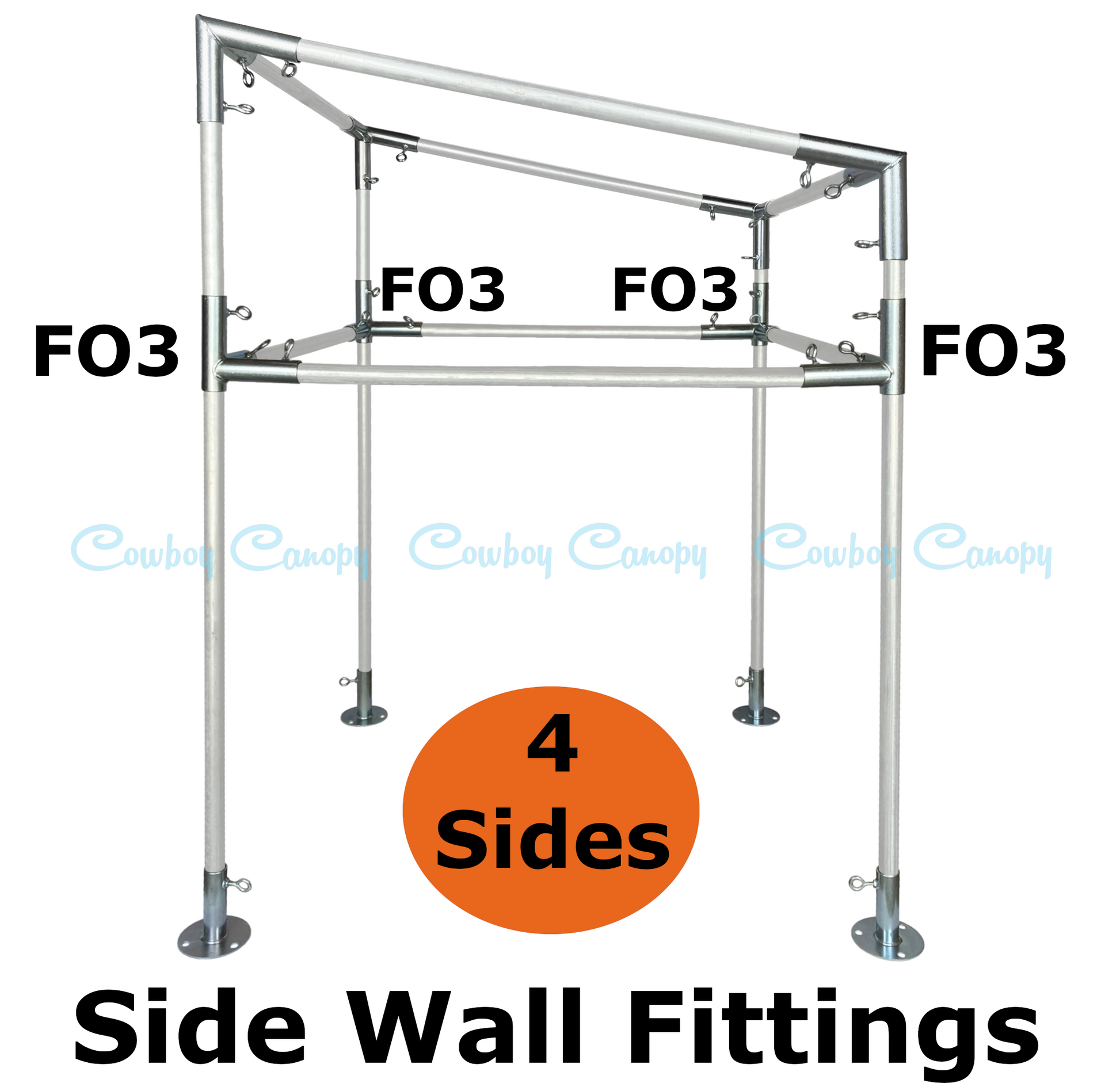

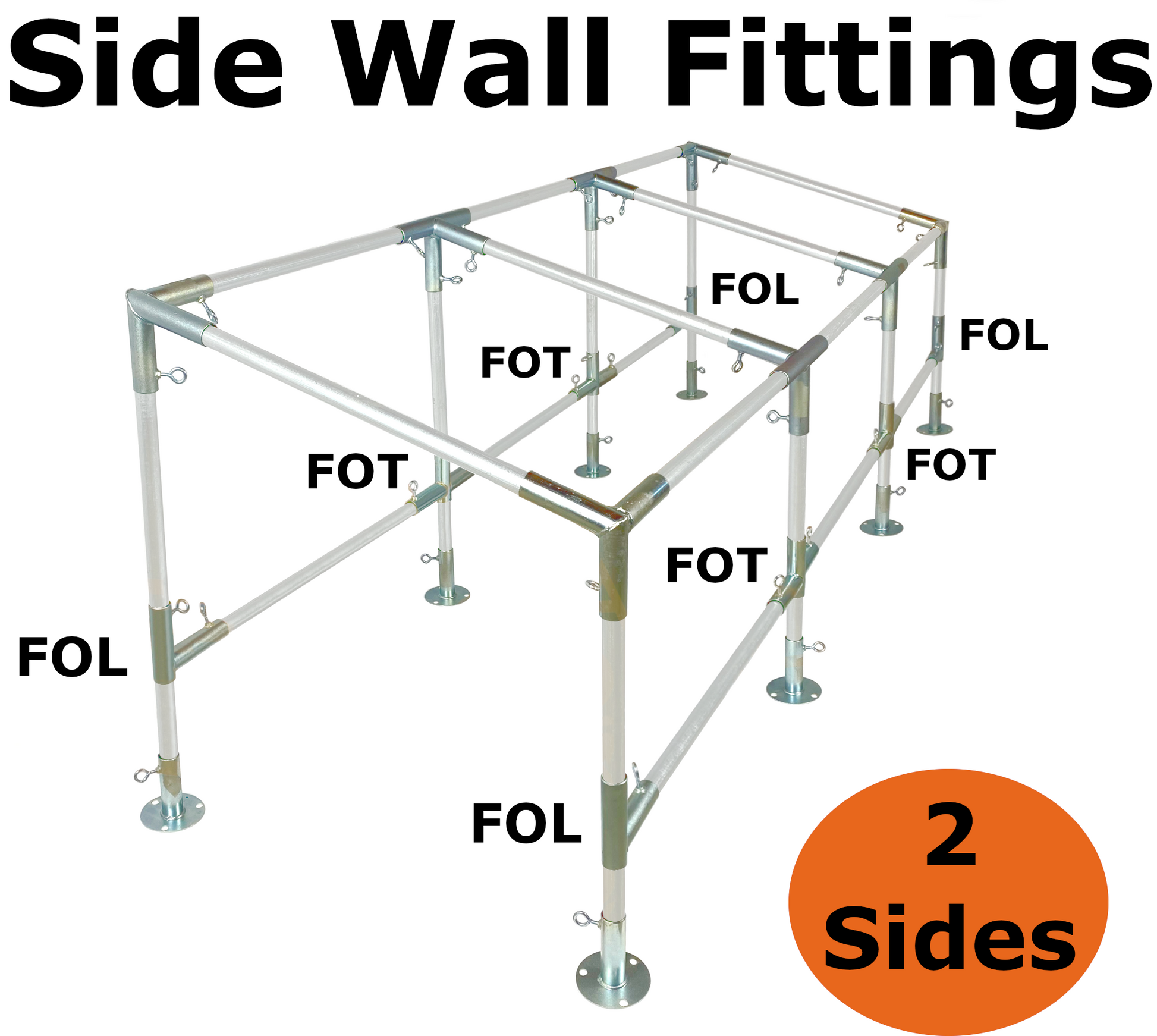

3. Side Wall Fittings - Add either 1, 2, 3, or 4 Side Walls. The side wall upgrade not only ties your canopy legs together for added horizontal strength but will also provide an additional option for attachment points to fixate side covers. To purchase additional side wall fittings beyond the standard upgrade options, search for FOL, FOT, and FO3 canopy fittings.

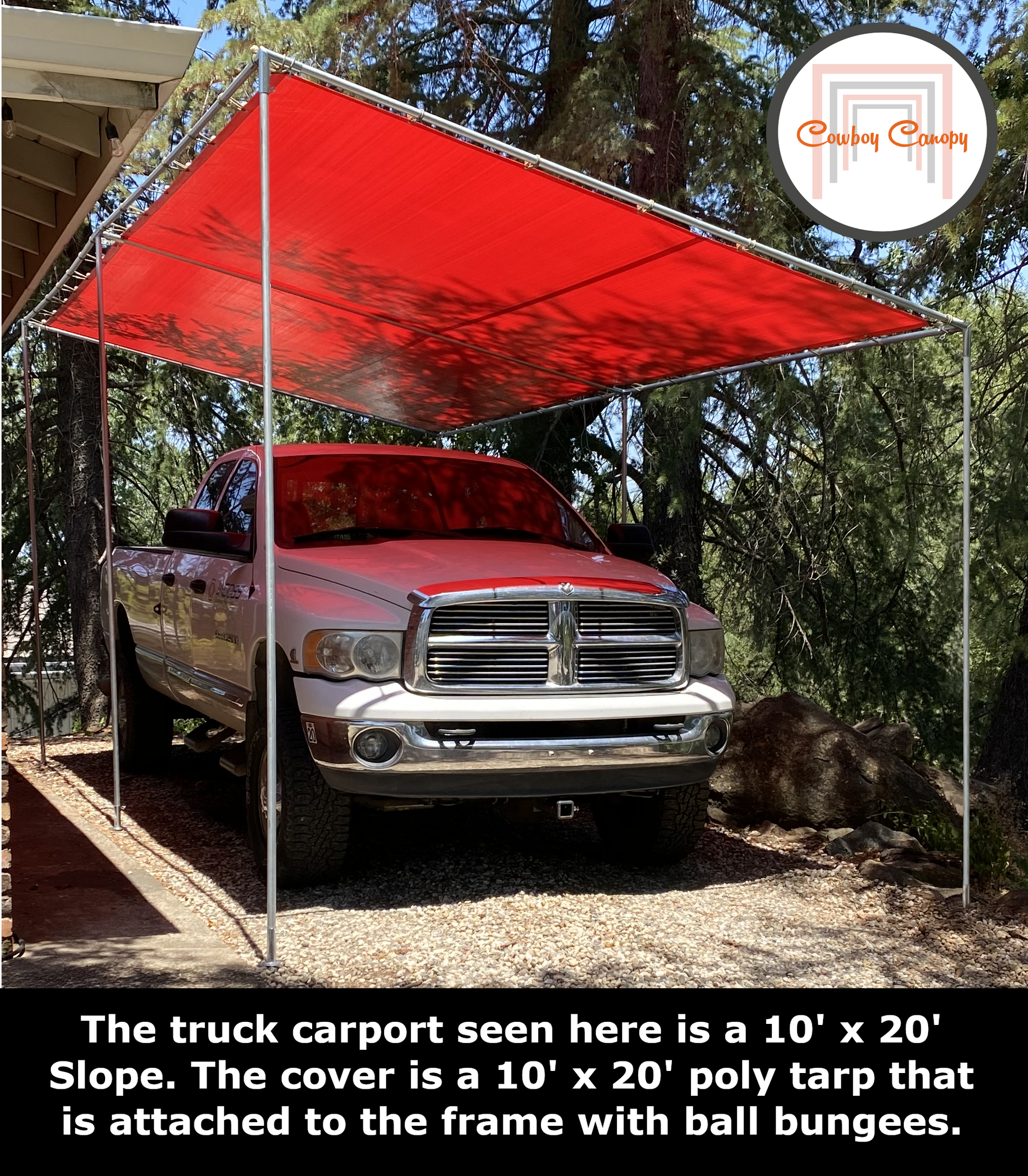

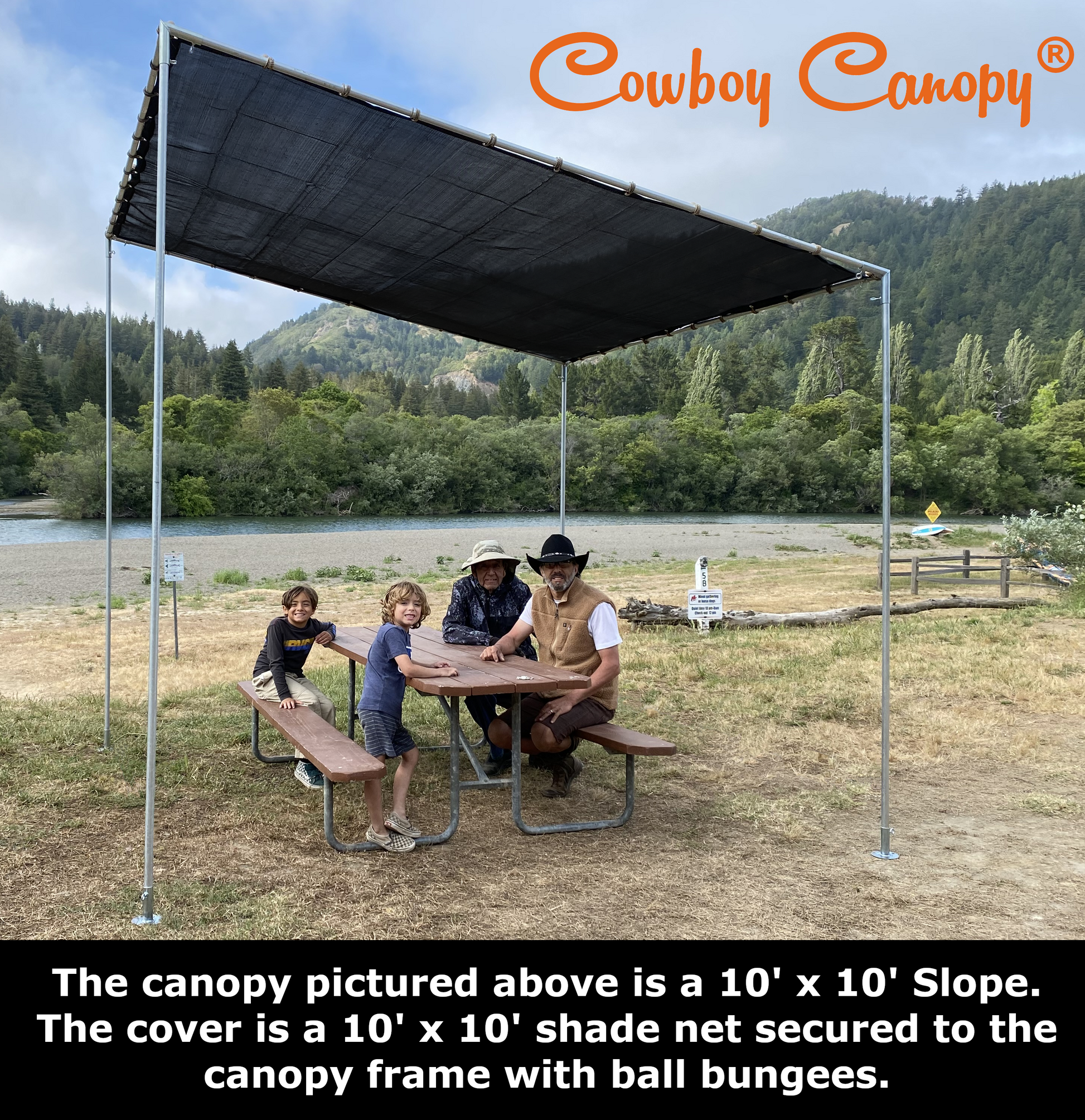

A Slope (Lean-To) Canopy is an excellent way to provide protection from the sun and rain, especially when unilateral water drainage is desired. However, a slope canopy is NOT recommended for snow. The slope roof pitch is not steep enough to cause shedding of accumulated snowfall like a high peak roof pitch. If you are seeking protection from snow, use a high peak or A-frame instead. Popular examples of slope roof canopies are carports, awnings and shade structures for porches/patios with rainwater being routed away from the house.
Please use caution when canopy building. It is the customer's responsibility during periods of severe weather to take the necessary actions to avoid canopy and/or property damage. It is strongly recommended to anchor your canopy to the ground. This can be done in many different ways. The most common is to utilize the pre-drilled holes on each foot pad base. All foot pads have three holes on the perimeter for this purpose. Anchor nails can be hammered through these holes and into the ground to anchor your canopy down. Cowboy Canopy is not responsible for canopy/property damage due to acts of nature. Acts of nature include wind, rain, snow, floods, severe storms, or any other naturally occurring event.
Slope (Lean-To) Canopy Fitting Quantities

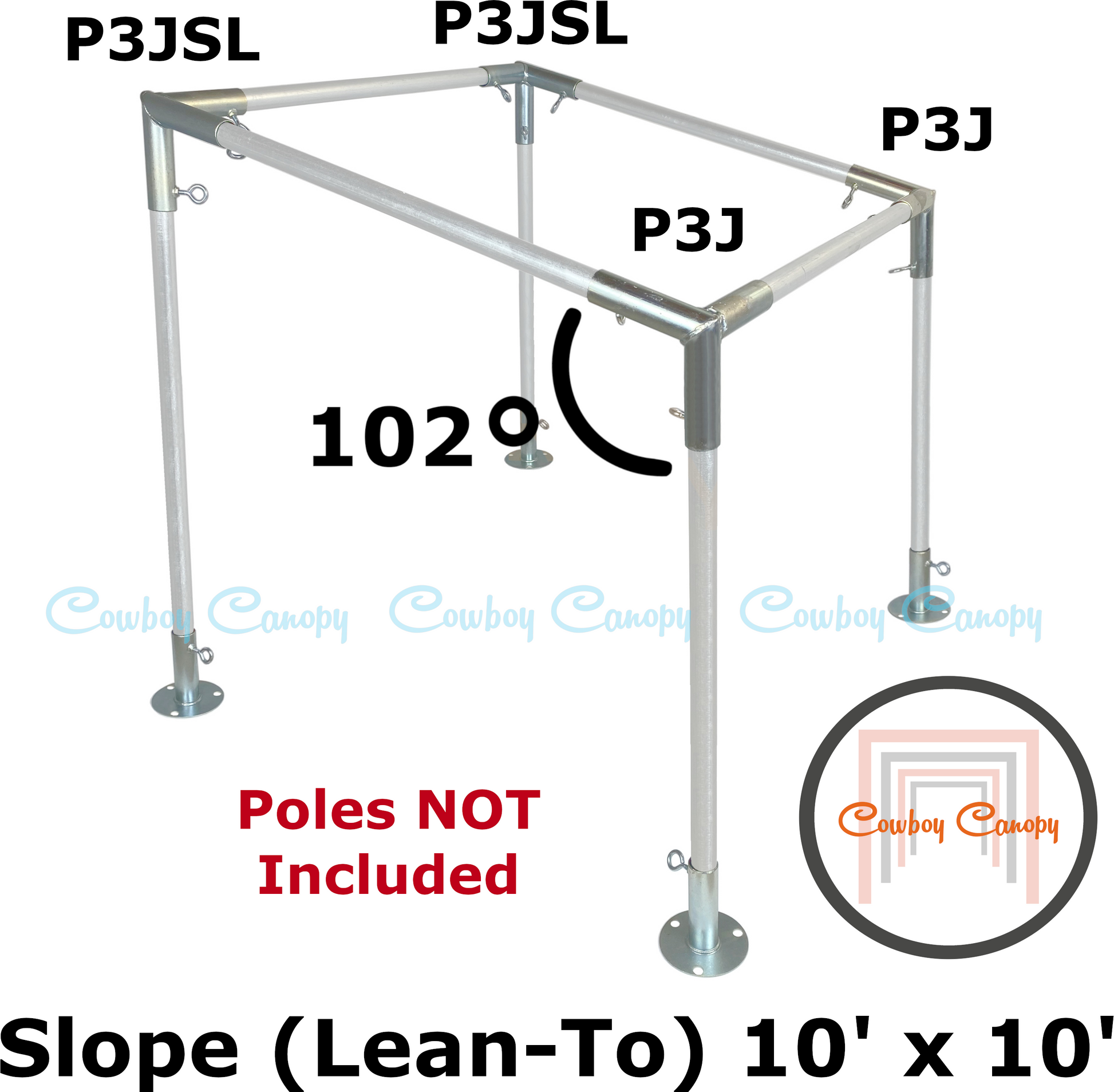

10' x 10' Slope Kit (4 Roof Fittings)
P3J - 2, P3JSL - 2

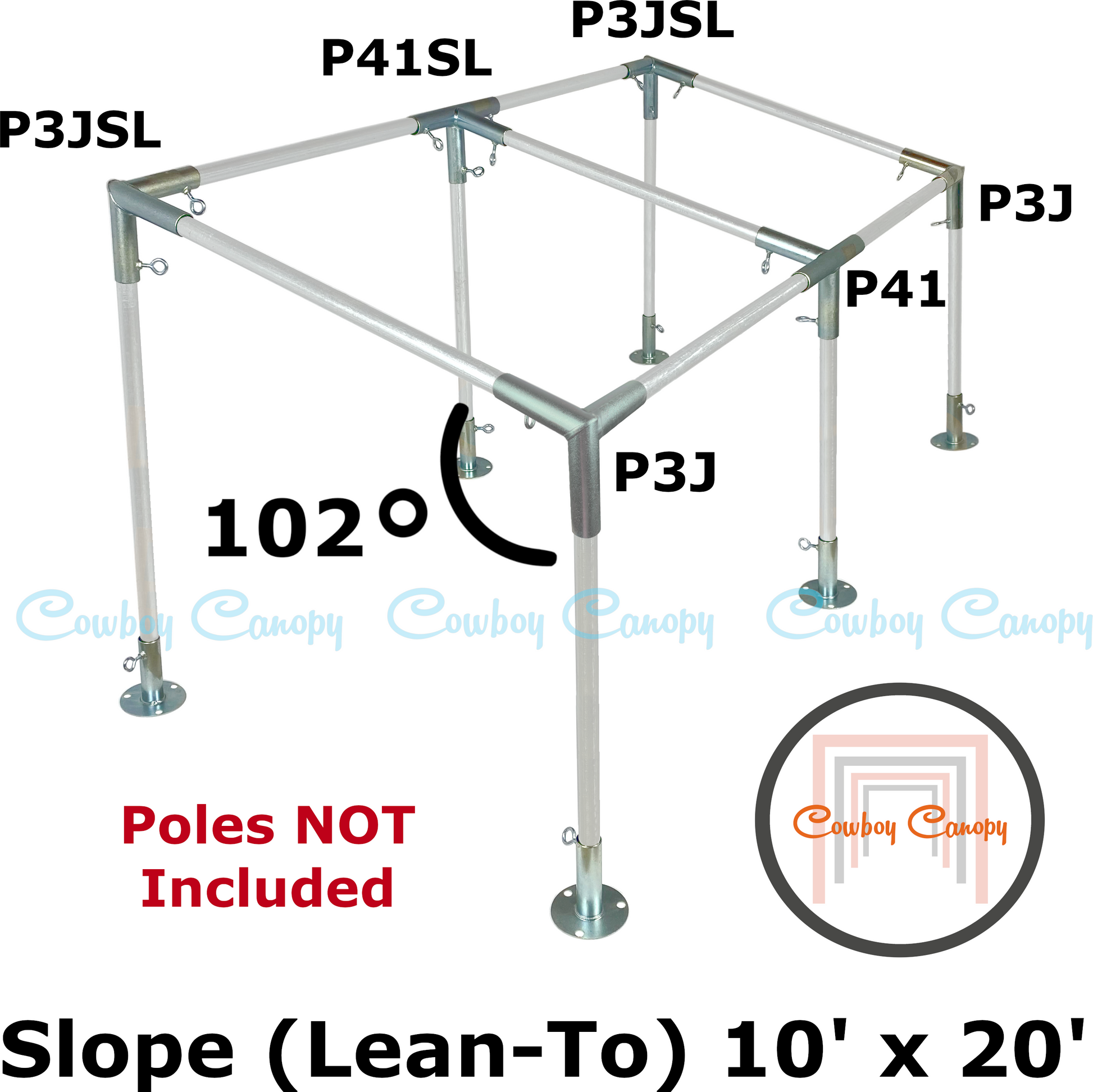

10' x 20' Slope Kit (6 Roof Fittings)
P3J - 2, P3JSL - 2, P41 - 1, P41SL - 1
10' x 30' Slope Kit (8 Roof Fittings)
P3J - 2, P3JSL - 2, P41 - 2, P41SL - 2
10' x 40' Slope Kit (10 Roof Fittings)
P3J - 2, P3JSL - 2, P41 - 3, P41SL - 3
CANOPY POLES ARE SOLD SEPARATELY
Number of poles (3/4" EMT conduit) you need to build the following canopy kits:
10' x 10' - No Sides - 8, 1 Side - 9, 2 Sides - 10, 3 Sides - 11, 4 Sides - 12
10' x 20' - No Sides - 13, 1 Side - 15, 2 Sides - 17, 3 Sides - 18, 4 Sides - 19
10' x 30' - No Sides - 18, 1 Side - 21, 2 Sides - 24, 3 Sides - 25, 4 Sides - 26
10' x 40' - No Sides - 23, 1 Side - 27, 2 Sides - 31, 3 Sides - 32, 4 Sides - 33
